X183 Battery Cable Jumper to Power Steering Jumper Harness
|
|
|

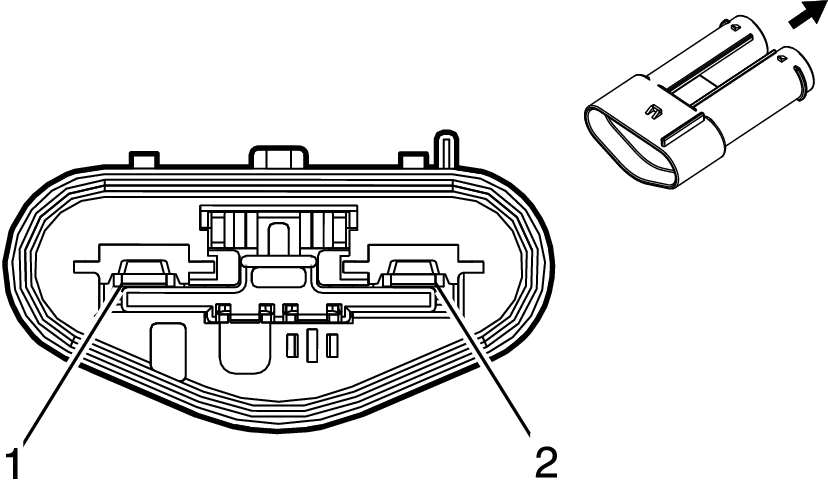

Connector Part Information
- Harness Type: Battery Cable Jumper
- OEM Connector: 13582138
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 2.8 Series, Sealed (BK)
|

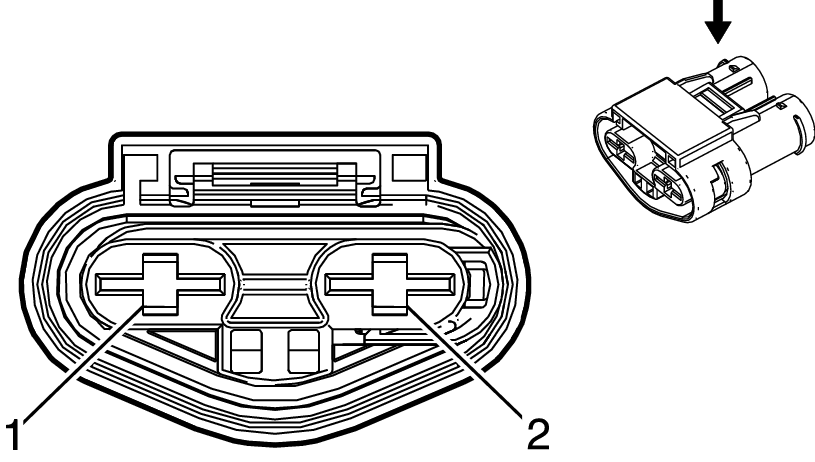

Connector Part Information
- Harness Type: Power Steering Jumper
- OEM Connector: 13508902
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-5 (PU) |
J-38125-12A |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-35 (VT) |
J-38125-12A |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
25 |
RD/VT |
842 |
I |
- |
Battery Positive Voltage |
1 |
25 |
RD/VT |
842 |
II |
- |
| 2 |
25 |
BK |
350 |
I |
- |
Ground |
2 |
25 |
BK |
350 |
II |
- |
