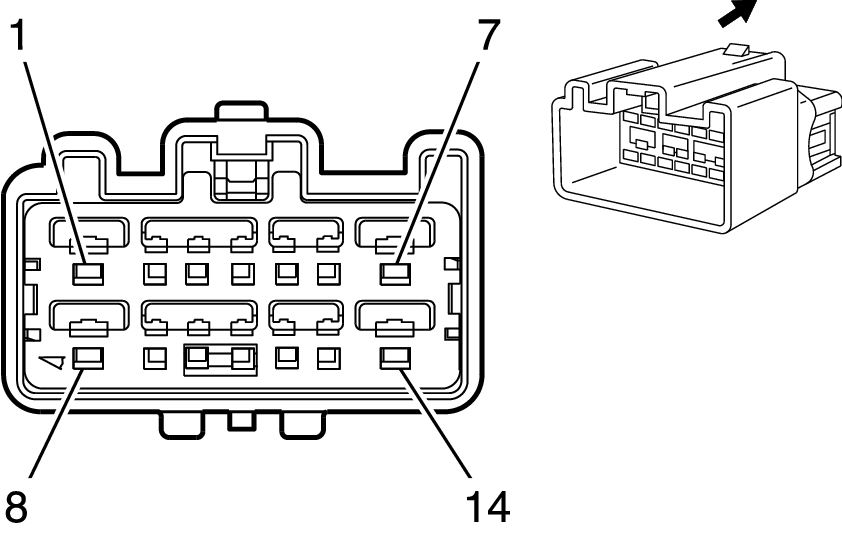

X307 Floor Console Harness to Floor Console Extension Harness
Connector Part Information
|
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-14 (GN) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| II | Not Required | J-35616-35 (VT) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| III | Not Required | J-35616-3 (GY) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| IV | Not Required | J-35616-5 (PU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| IV | Not Required | J-35616-5 (PU) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Terminal Type ID | Option | Function | Pin | Size | Color | Circuit | Terminal Type ID | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1.5 | RD/WH | 1040 | II | - | Battery Positive Voltage | 1 | 1.5 | RD/WH | 1040 | IV | - |
| 2 | 0.35 | RD/GY | 2840 | I | - | Battery Positive Voltage Battery Positive Voltage |
2 | 0.35 | RD/GY | 2840 | III | - |
| 3 | 0.5 | GN/WH | 7527 | I | - | Local Interconnect Network Serial Data Bus 5 Local Interconnect Network Serial Data Bus 5 |
3 | 0.35 | GN/WH | 7527 | III | - |
| 4 | 0.35 | BU | 2060 | I | - | Auxiliary Detection Signal Auxiliary Detection Signal |
4 | 0.35 | BU | 2060 | III | - |
| 5 | 0.5 | YE | 6817 | I | - | LED Backlight Dimming Control LED Backlight Dimming Control |
5 | 0.5 | YE | 6817 | III | - |
| 6 | - | - | - | - | - | Not Occupied | 6 | - | - | - | - | - |
| 7 | 0.75 | RD/VT | 340 | II | - | Battery Positive Voltage | 7 | 0.75 | RD/VT | 340 | IV | - |
| 8 | 1.5 | BK | 1050 | II | - | Ground | 8 | 1.5 | BK | 1050 | IV | - |
| 9 | 0.35 | BK | 1850 | I | - | Ground Ground |
9 | 0.35 | BK | 1850 | III | - |
| 10 | 0.35 0.5 |
GN BK |
5841 1050 |
I I |
-DCK X88/Z88 |
Right Auxiliary Audio Signal 2 Ground |
10 | 0.35 0.5 |
GN BK |
5841 1050 |
III III |
-DCK X88/Z88 |
| 11 | 0.35 0.5 |
GY WH |
5839 6816 |
I I |
-DCK X88/Z88 |
Left Auxiliary Audio Signal 2 Left Auxiliary Audio Signal 2 Indicator Dimming Control |
11 | 0.35 0.5 |
GY WH |
5839 6816 |
III III |
-DCK X88/Z88 |
| 12 | 0.35 0.35 0.35 |
VT BN BN |
5843 6532 6532 |
I I I |
-DCK X88/Z88 Z75 |
Auxiliary Audio Common Signal Power Rear Compartment Lid On/Off Control Power Rear Compartment Lid On/Off Control |
12 | 0.35 0.35 0.35 |
VT BN BN |
5843 6532 6532 |
III III III |
-DCK X88/Z88 Z75 |
| 13 | 0.5 0.35 0.35 |
BARE GY/BK GY/BK |
5842 2546 2546 |
I I I |
-DCK X88/Z88 Z75 |
Auxiliary Audio Screen 2 Rear Steering Axle Control Motor Control Phase B Rear Steering Axle Control Motor Control Phase B |
13 | 0.5 0.35 0.35 |
BARE GY/BK GY/BK |
5842 2546 2546 |
III III III |
-DCK X88/Z88 Z75 |
| 14 | 0.35 | BK | 2550 | II | - | Ground | 14 | 0.35 | BK | 2550 | IV | - |
