X303 Instrument Panel Harness to Floor Console Extension Harness

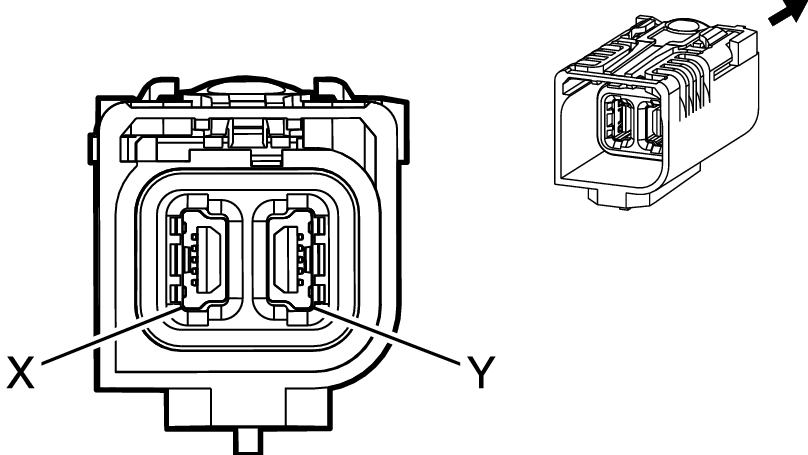

GM4007739

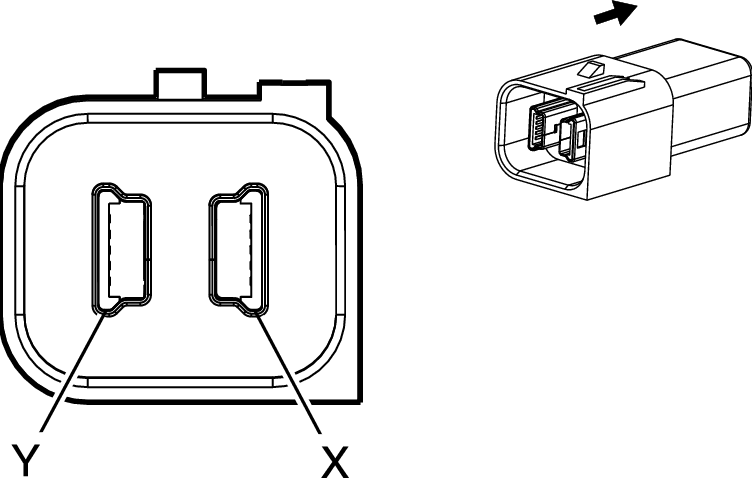

GM4007740
Connector Part Information
  • Harness Type: Instrument Panel USB
  • OEM Connector: 13586195
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 10-Way F 2.0 Mini-B USB Type (BK)
 Connector Part Information
  • Harness Type: Floor Console Extension USB
  • OEM Connector: 13586193
  • Service Connector: Service by Cable Assembly - See Part Catalog
  • Description: 10-Way M 2.0 Mini-B USB Type (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required No Tool Required No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
- - USB - I - USB Serial Data - - USB - I -
