Front Side Door Lower Auxiliary Weatherstrip Replacement

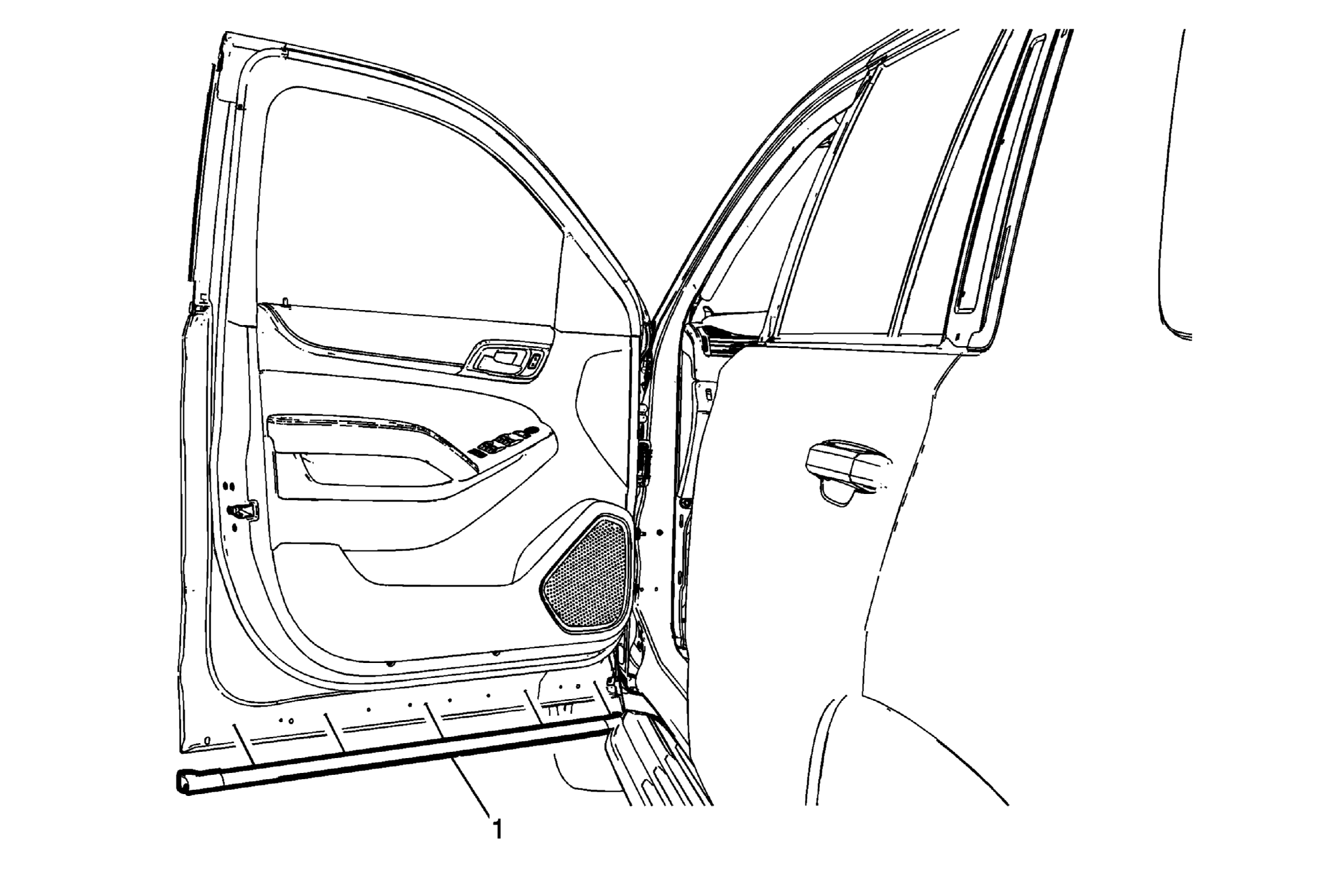

Fig 1: Front Side Door Lower Auxiliary Weatherstrip
GM3611694Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Lower Auxiliary Weatherstrip

Procedure

  1. Open the door to the full open position.
  2. Using the appropriate tool, unclip the front side door lower auxiliary weatherstrip from the front door.
NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
