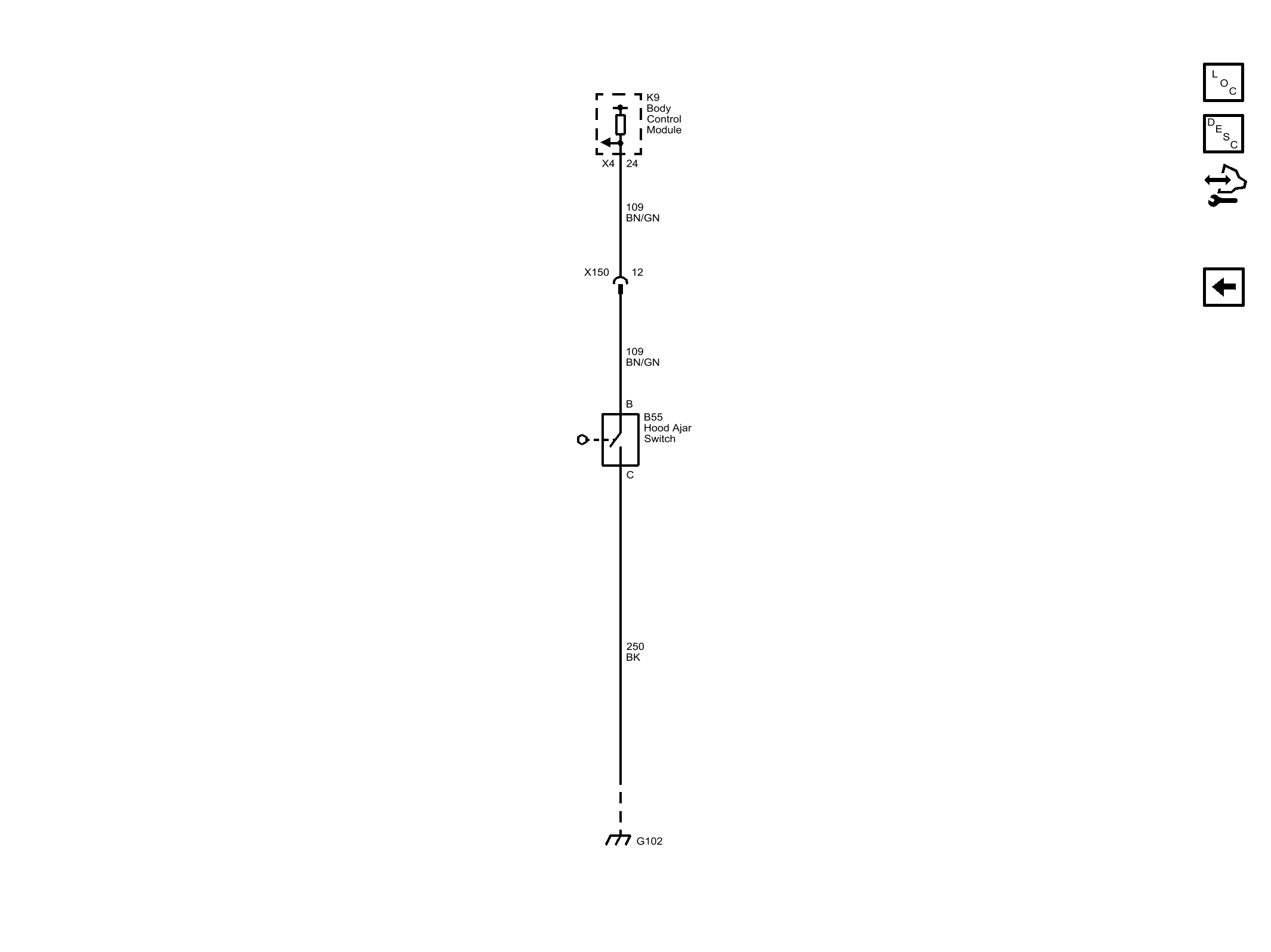

Home >> Cadillac >> 2017 >> Escalade ESV Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures >> Schematic Wiring Diagrams >> Hood Latch Wiring Schematics >> Hood Ajar Switch (L96)
