Front Side Door Wiring Harness Replacement

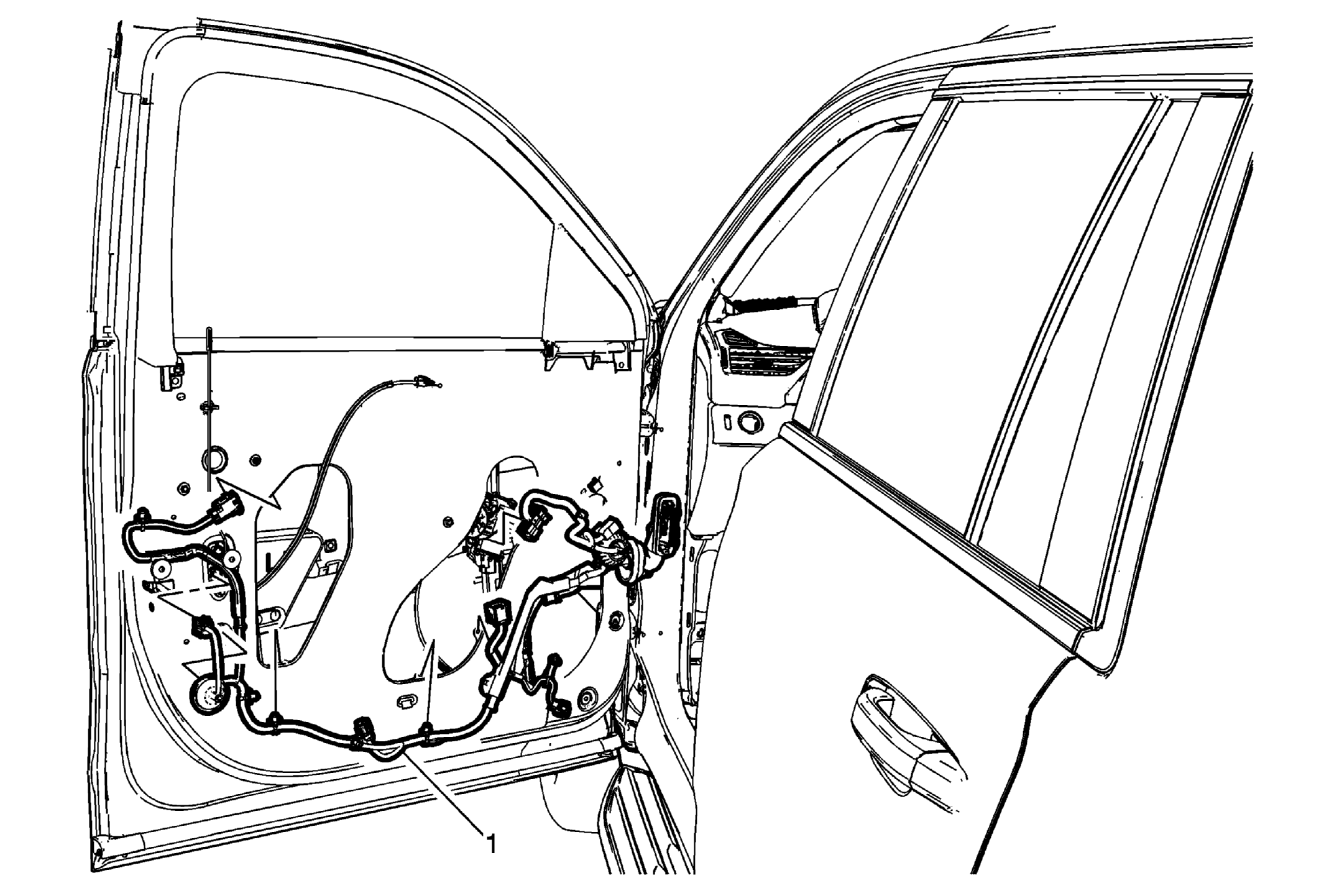

Fig 1: Front Side Door Wiring Harness

GM3612117

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Open the door to the full open position.
Remove the front side door pull handle bracket. Refer to Front Side Door Pull Handle Bracket Replacement .
Remove the radio front side door speaker. Refer to Radio Front Side Door Speaker Replacement .
Remove the front side door water deflector.

1

Front Side Door Wiring Harness
Procedure
Disconnect electrical connectors.
