Ignition and Start Switch Replacement (Without BTM)

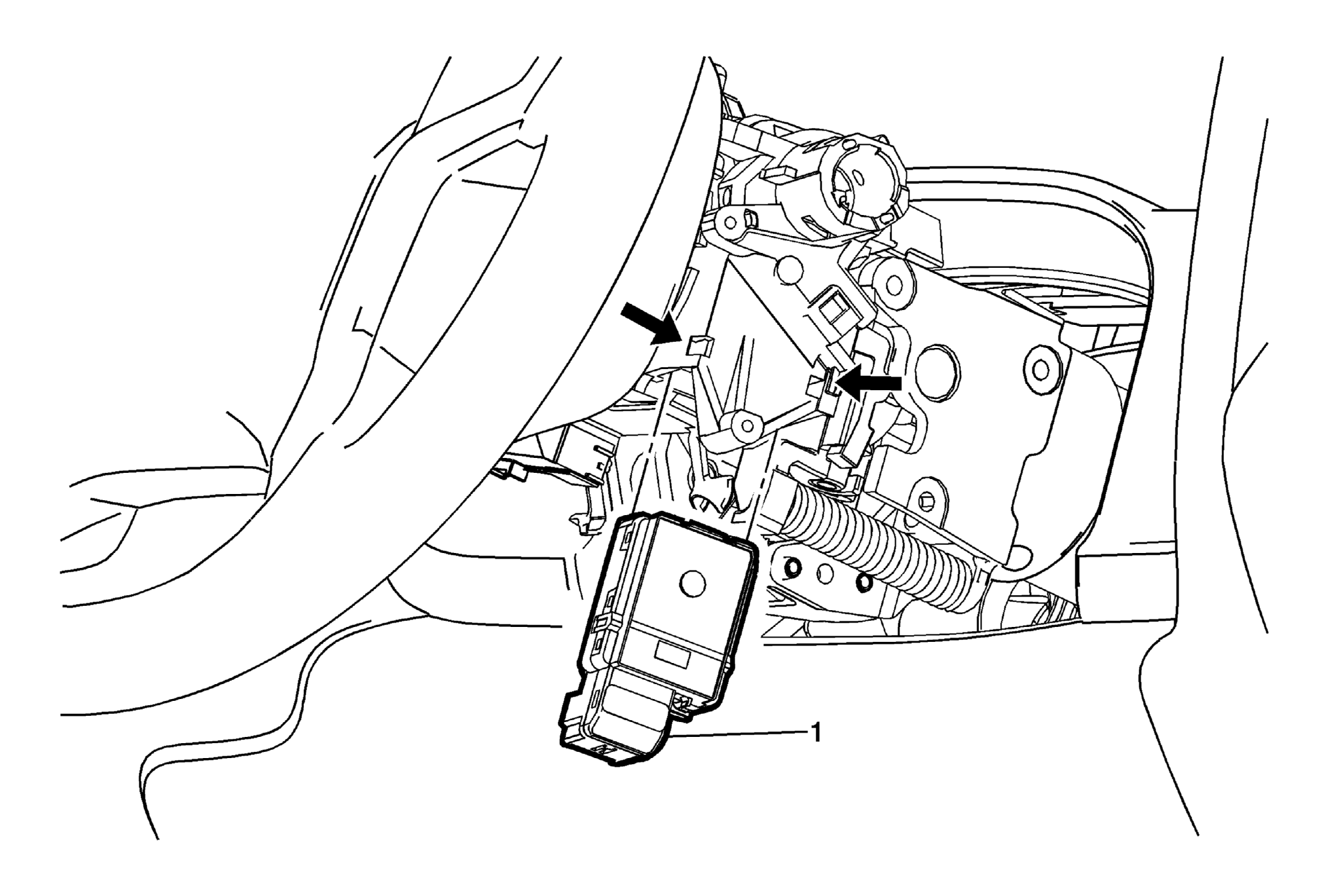

Fig 1: Ignition And Start Switch (Without BTM)
GM3271146Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Theft Deterrent Module. Refer to Theft Deterrent Module Replacement (Without BTM)
1 Ignition and Start Switch

Procedure

  1. Disconnect the electrical connector.
  2. Remove the Passlock and key buzzer from the ignition lock cylinder case.
  3. Use the EL-42759  release tool to release the plastic retaining tabs on the ignition and start switch.
  4. Pull the ignition and start switch out of the ignition lock cylinder case.

Special Tools
EL-42759  Ignition Switch Connector Release Tool
Equivalent regional tools: Special Tools
