Ignition and Start Switch Replacement (Chevrolet/GMC With BTM)

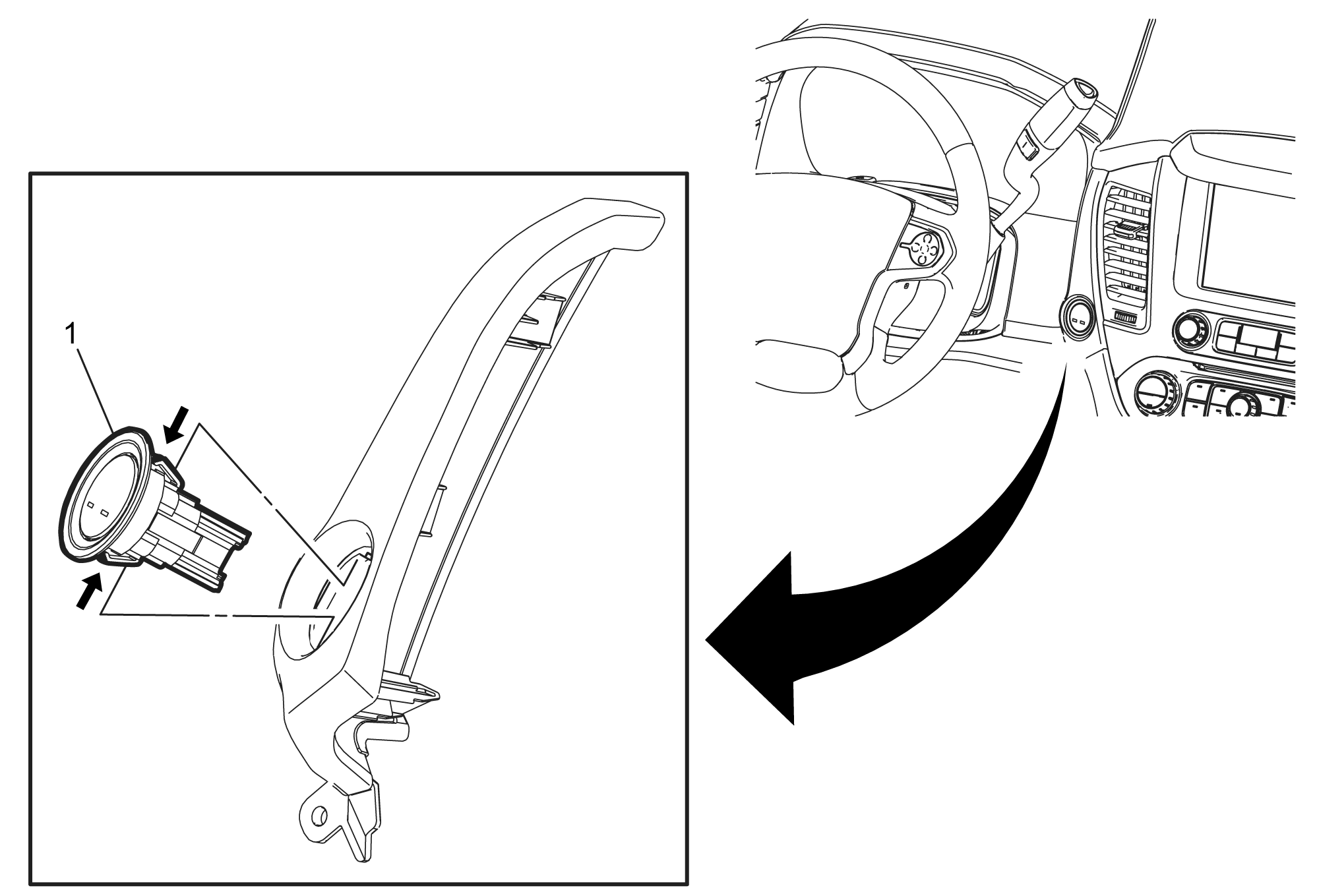

Fig 1: Ignition And Start Switch (Chevrolet/GMC With BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement (Chevrolet/GMC) .
1	Ignition and Start Switch Procedure Disconnect electrical connection. Depress tabs on switch and remove from the panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement (Chevrolet/GMC) .

Ignition and Start Switch

Procedure
