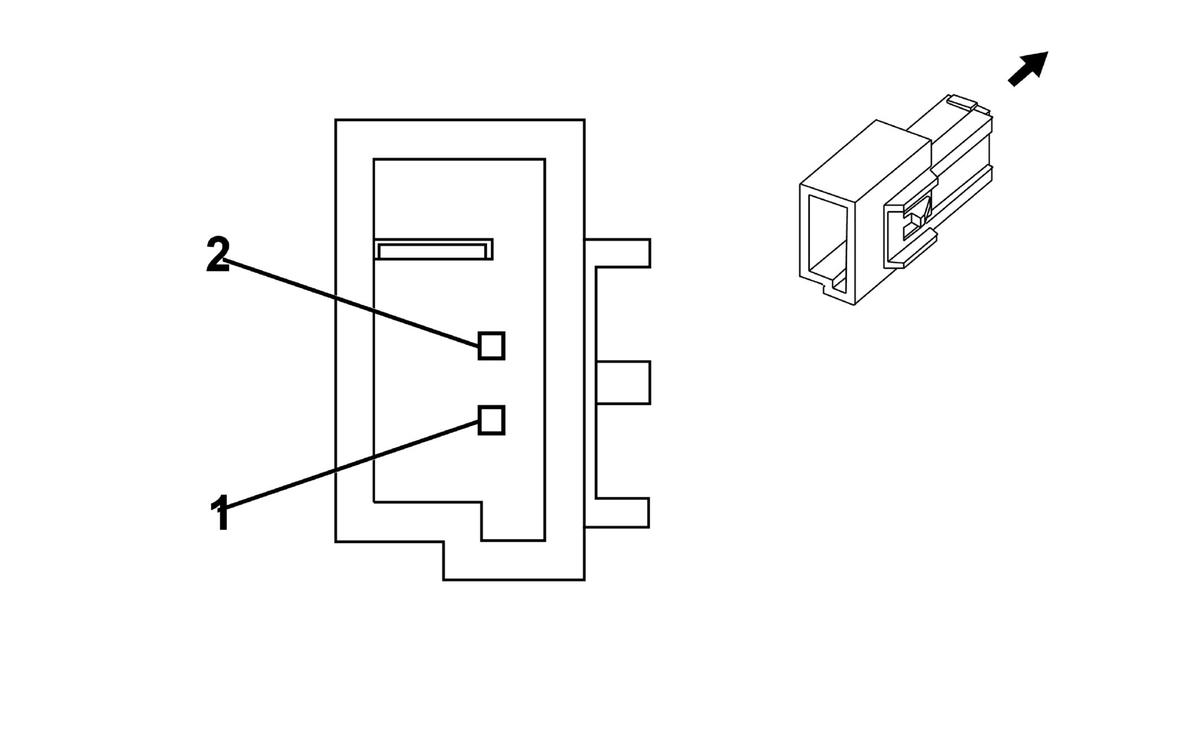

E14A Seat Heating Element - Driver Back
|
|
Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: AIT2WSB-02A-1AK
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN |
2432 |
Driver Heated Back Element Control |
I |
- |
| 2 |
0.75 |
BK |
1150 |
Ground |
I |
- |
