B75C Multifunction Intake Air Sensor

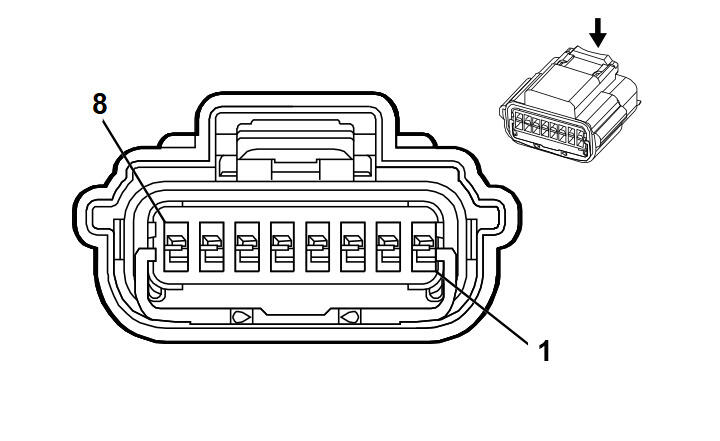

Connector Part Information Harness Type: Engine OEM Connector: 13774439 Service Connector: 13583440 Description: 8-Way F 0.64 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	WH/D-BU	6289	Induction Air Temperature Sensor Signal	I	-
2	0.5	WH/RD	3201	Throttle Inlet Absolute Pressure Sensor 5V Reference	I	-
3	0.5 0.5	WH/YE BK/VT	3202 2760	Throttle Inlet Absolute Pressure Sensor Low Reference Intake Air Temperature Sensor Low Reference	I I	L83/L86/L8B L96
4	0.5	YE/WH	3200	Throttle Inlet Absolute Pressure Sensor Signal	I	-
5	0.5	VT/D-BU	5294	Powertrain Main Relay Fused Supply 5	I	-
6	0.5	GN/WH	492	Mass Air Flow Sensor Signal	I	-
7	0.75	BK/WH	451	Signal Ground	I	-
8	0.5	GY/D-BU	7564	Humidity Sensor Signal	I	-
