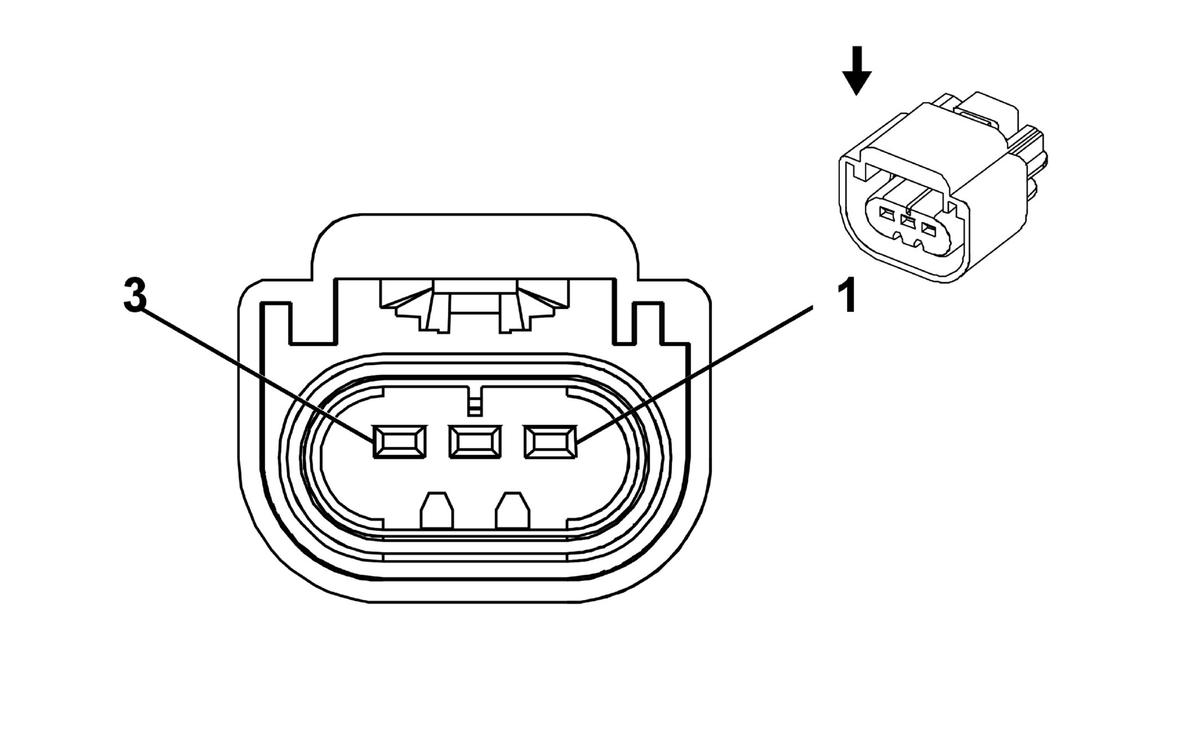

B198 Fuel Composition Sensor
|
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13511132
- Service Connector: 19301582
- Description: 3-Way F 150 GT Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/D-BU |
5294 |
Powertrain Main Relay Fused Supply 5 |
I |
- |
| 2 |
0.5 |
BK |
2150 |
Ground |
I |
- |
| 3 |
0.5 |
WH |
1579 |
Fuel Temperature/Composition Signal |
I |
- |
