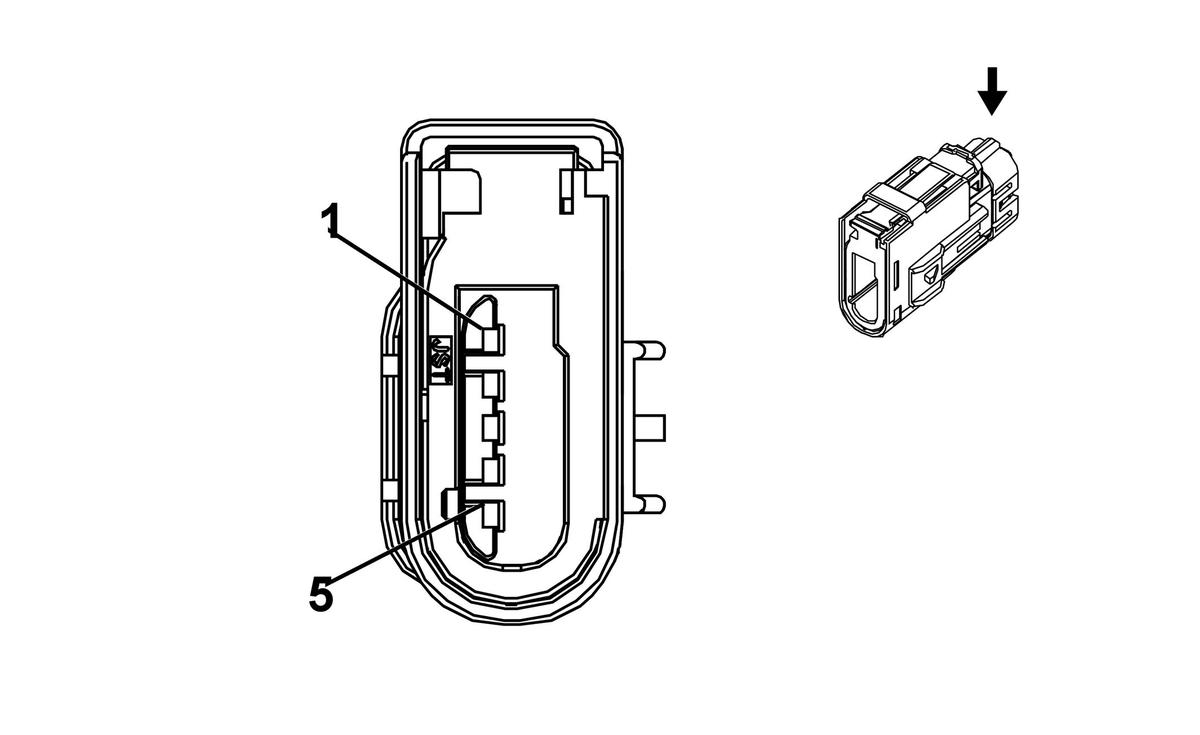

B174G Frontview Camera - Grille
|
|
Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 13934096
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way M 1.2 Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-13 (BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU |
3373 |
Auxiliary Video High Signal 2 |
I |
- |
| 2 |
0.35 |
BK |
3371 |
Video Low Reference 2 |
I |
- |
| 3 |
0.35 |
GY |
3372 |
Auxiliary Video Low Signal 2 |
I |
- |
| 4 |
0.35 |
BK/WH |
2551 |
Signal Ground |
I |
- |
| 5 |
0.5 |
WH/BN |
6201 |
Camera Control |
I |
- |
