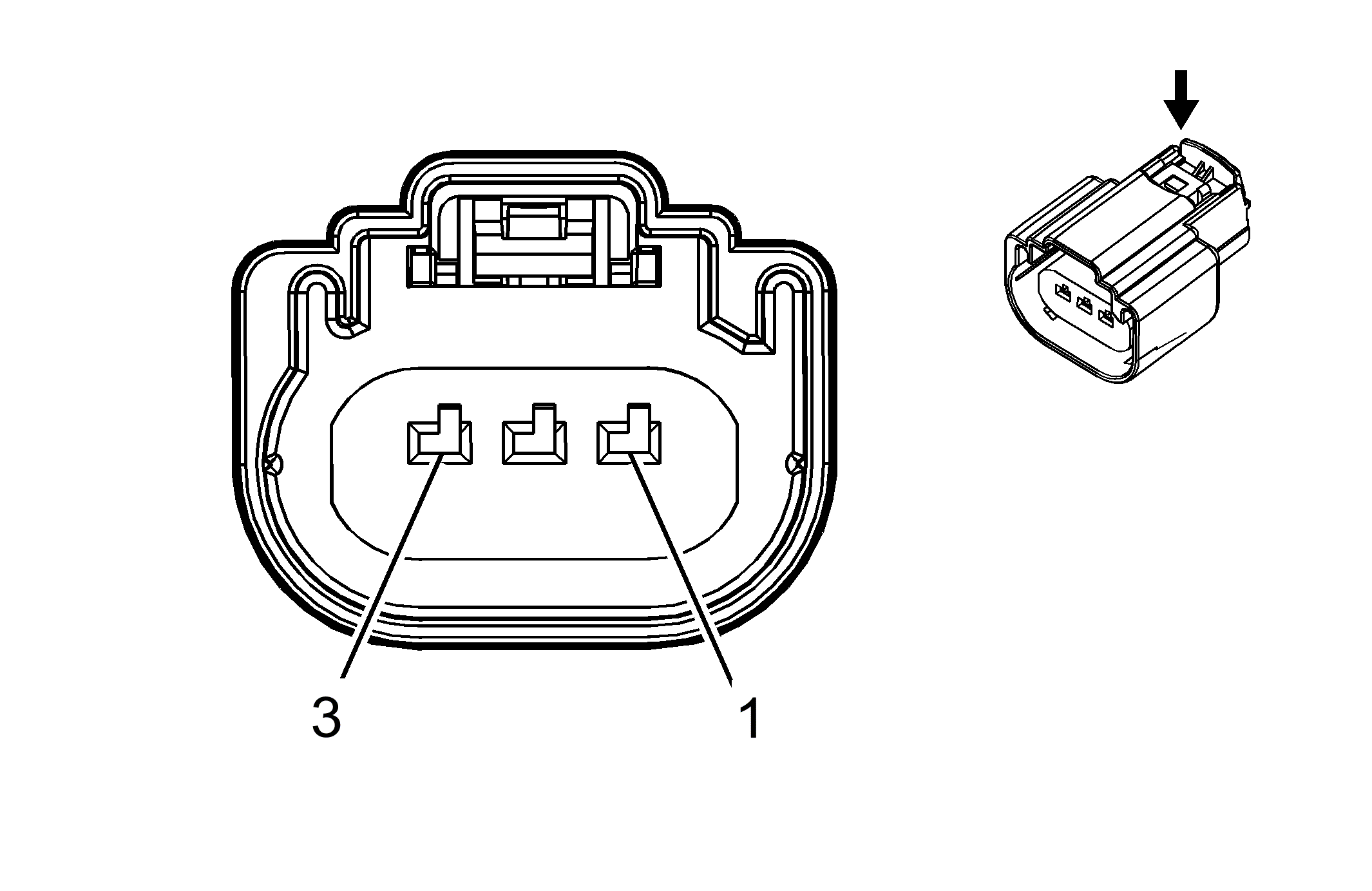

B152RF Suspension Position Sensor - Right Front
|
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13873527
- Service Connector: 19300594
- Description: 3-Way F 1.5 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/RD |
1211 |
Right Front Strut Position Sensor 5V Reference |
I |
- |
| 2 |
0.5 |
BK/GY |
1212 |
Right Front Strut Position Sensor Low Reference |
I |
- |
| 3 |
0.5 |
YE/WH |
1213 |
Right Front Strut Position Sensor Signal |
I |
- |
