Head-Up Display Replacement (Cadillac)

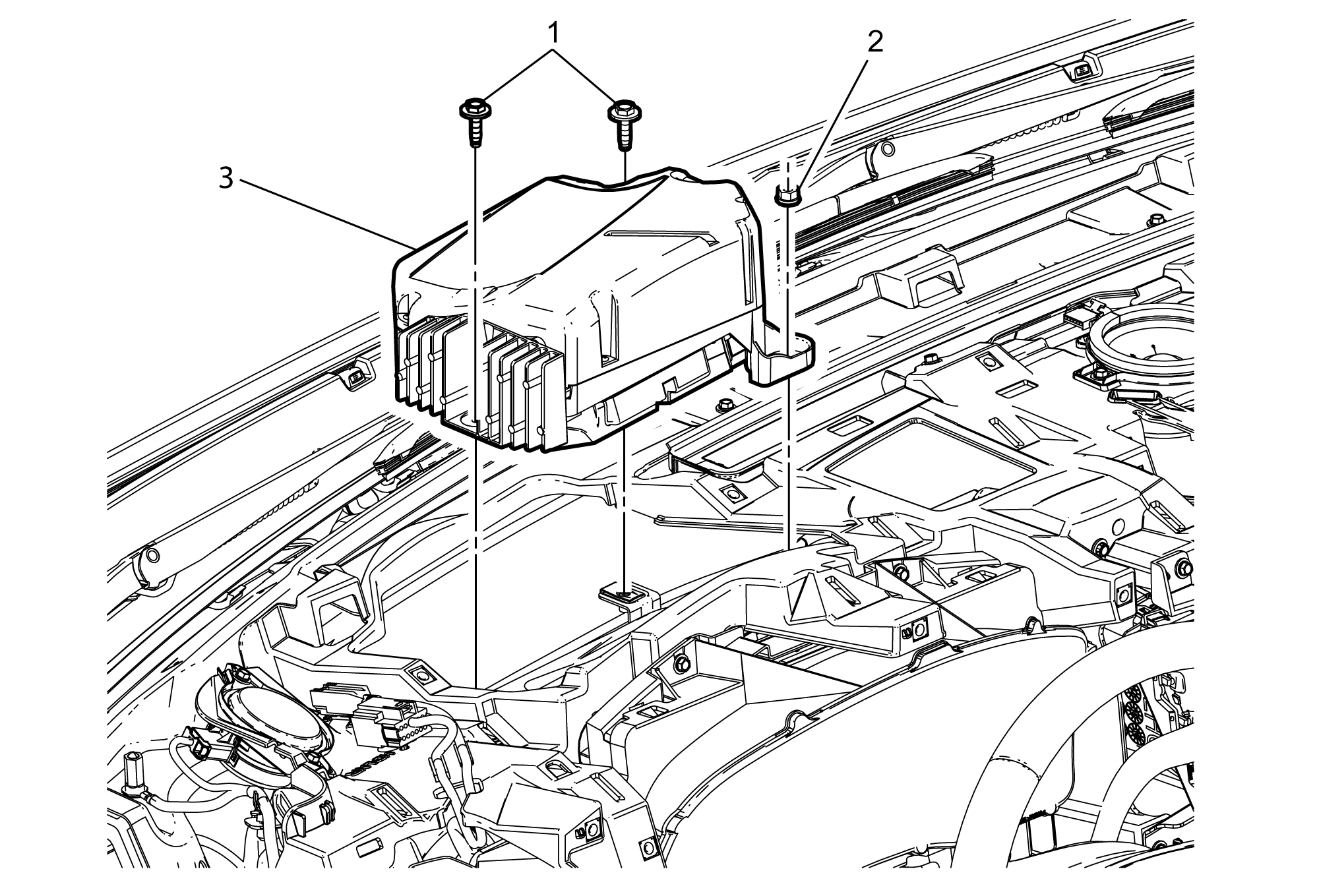

Fig 1: Head-Up Display (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement (Cadillac) .
1	Head-Up Display Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Head-Up Display Nut Tighten 9 N.m (80 lb in)
3	Head-Up Display Procedure Disconnect the electrical connector. Refer to Control Module References for programming and set up procedures, if required.
