Ambient Air Temperature Sensor Replacement (Z88)

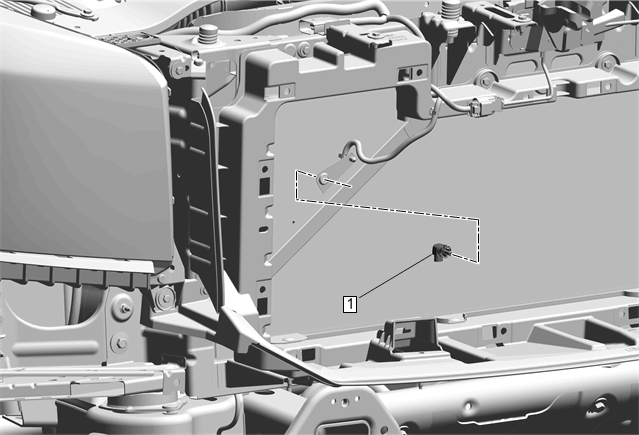

Fig 1: Ambient Air Temperature Sensor (Z88)

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (GMC)
1	Ambient Air Temperature Sensor Procedures Squeeze the tabs on the ambient temperature sensor, and push ambient temperature sensor back out of the ambient air temperature sensor bracket. Disconnect the electrical connector.

Call out

Component Name

Preliminary Procedure
Remove the front bumper fascia assembly. Refer to Front Bumper Fascia Replacement (GMC)

Ambient Air Temperature Sensor

Procedures

Squeeze the tabs on the ambient temperature sensor, and push ambient temperature sensor back out of the ambient air temperature sensor bracket.
Disconnect the electrical connector.
