Front Bumper Impact Bar Replacement (GMC)

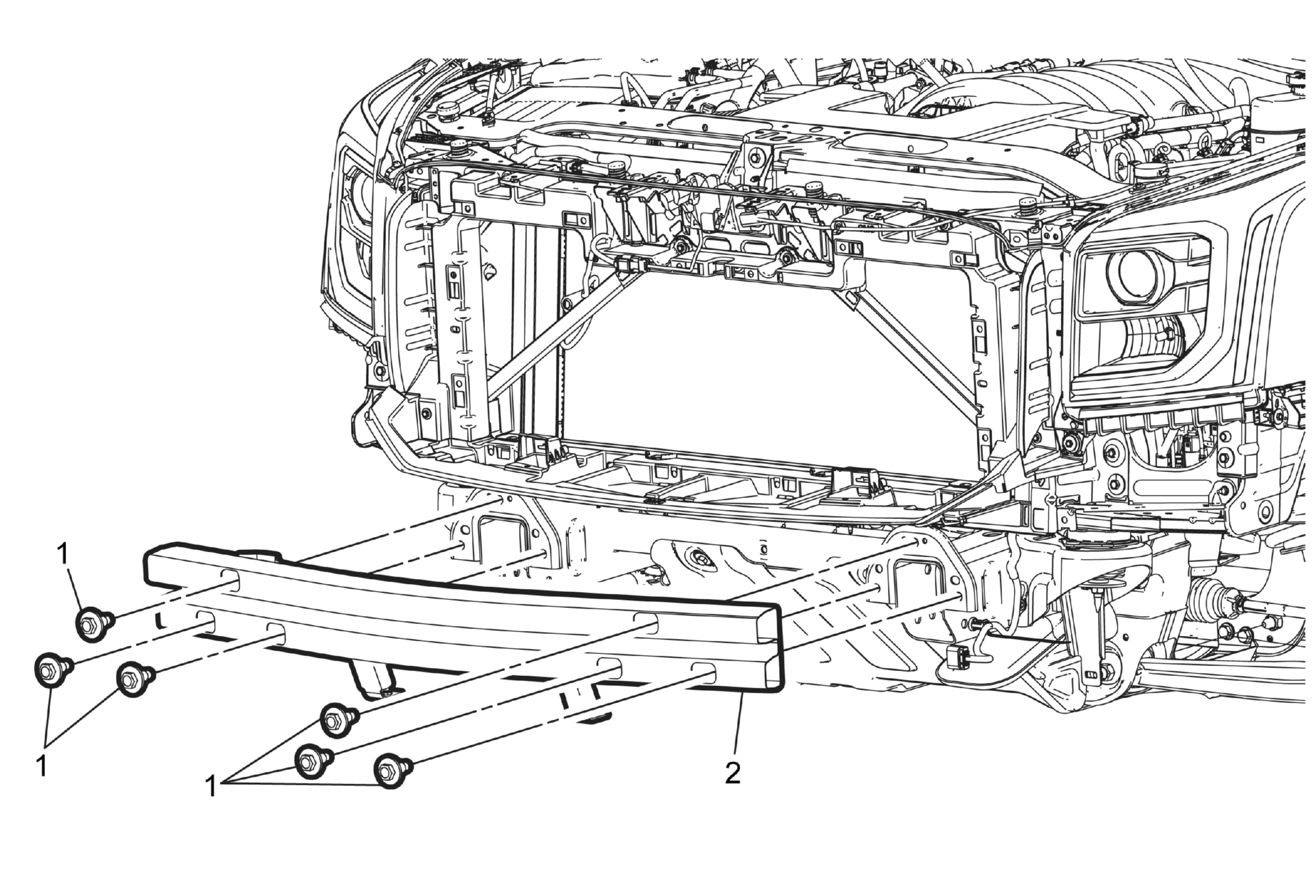

Fig 1: Front Bumper Impact Bar (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (GMC) .
1	Front Bumper Impact Bar Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten  58 N.m (43 lb ft)
2	Front Bumper Impact Bar Procedure  Disconnect the electrical harness from the impact bar if needed.
