Instrument Panel Multifunction Switch Replacement (Cadillac)

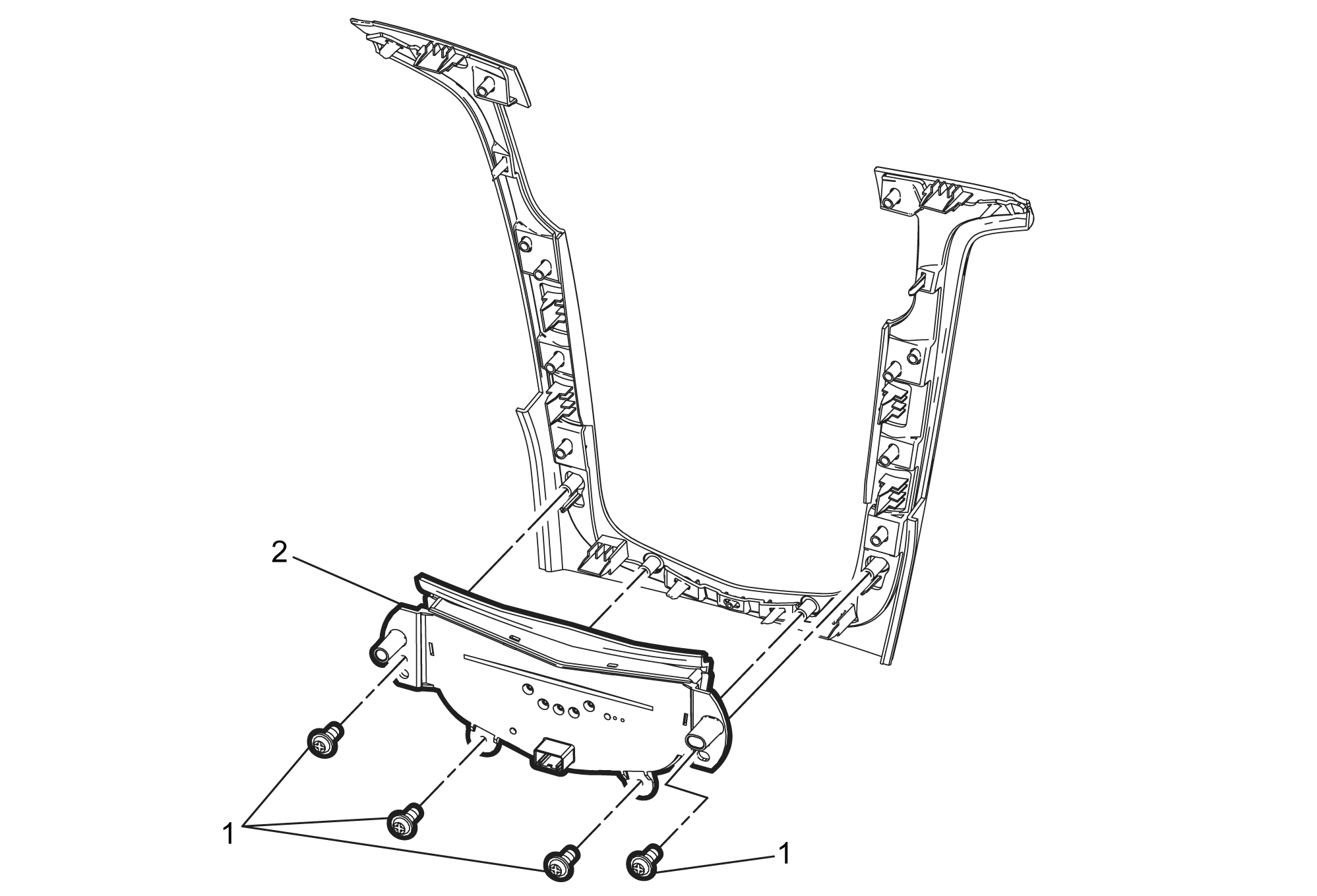

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement (Cadillac) . |
|
| 1 | Instrument Panel Multifunction Switch Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten .75 N.m (6.6 lb in) |
| 2 | Instrument Panel Multifunction Switch |
