Head-Up Display Replacement (Chevrolet/GMC)

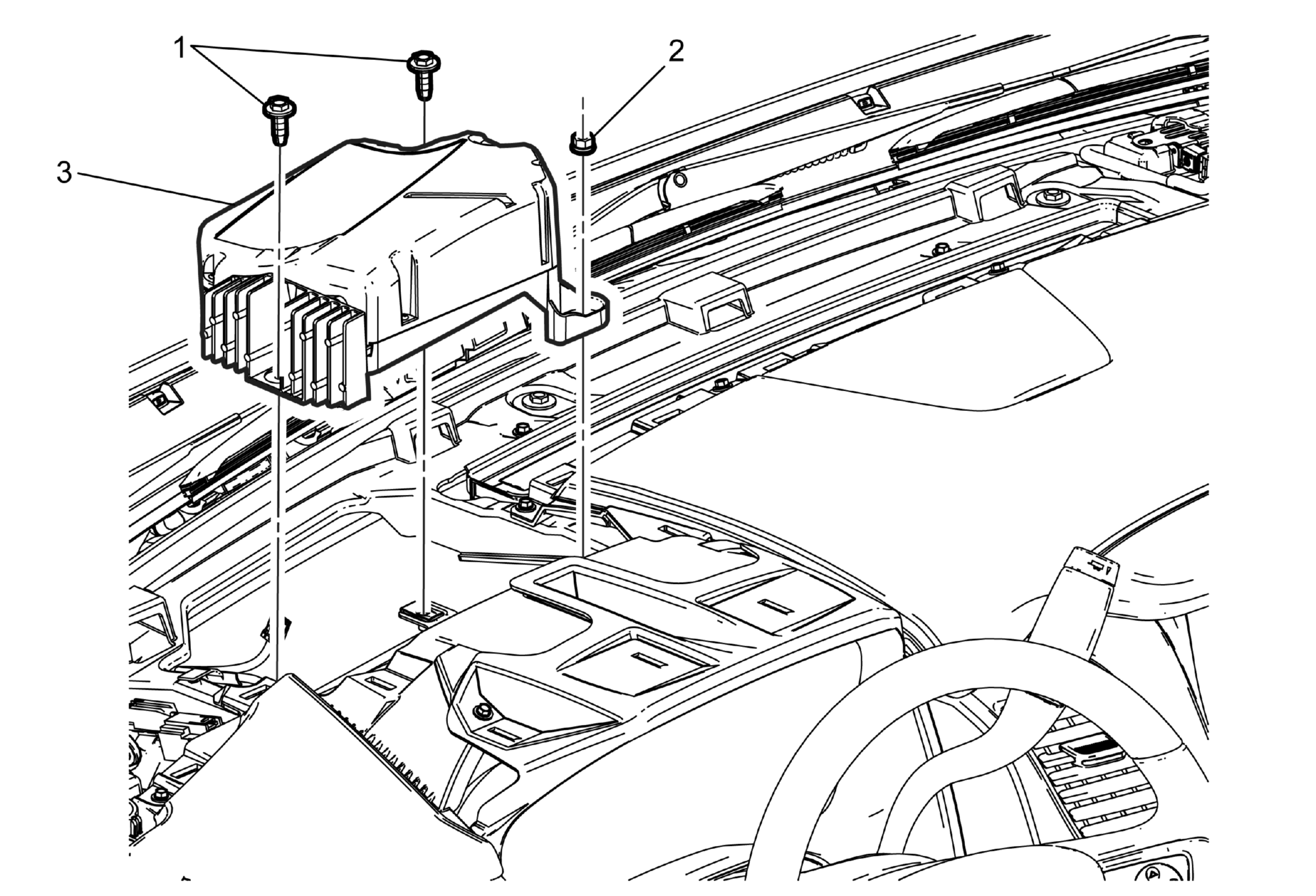

Fig 1: Head-Up Display (Chevrolet/GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the windshield defroster nozzle grille. Refer to Windshield Defroster Nozzle Grille Replacement (Chevrolet/GMC) .
1	Head-Up Display Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Head-Up Display Nut Tighten  9 N.m (80 lb in)
3	Head-Up Display Procedure  Disconnect the electrical connector.
