Head-Up Display Dimmer Switch Replacement (Cadillac)

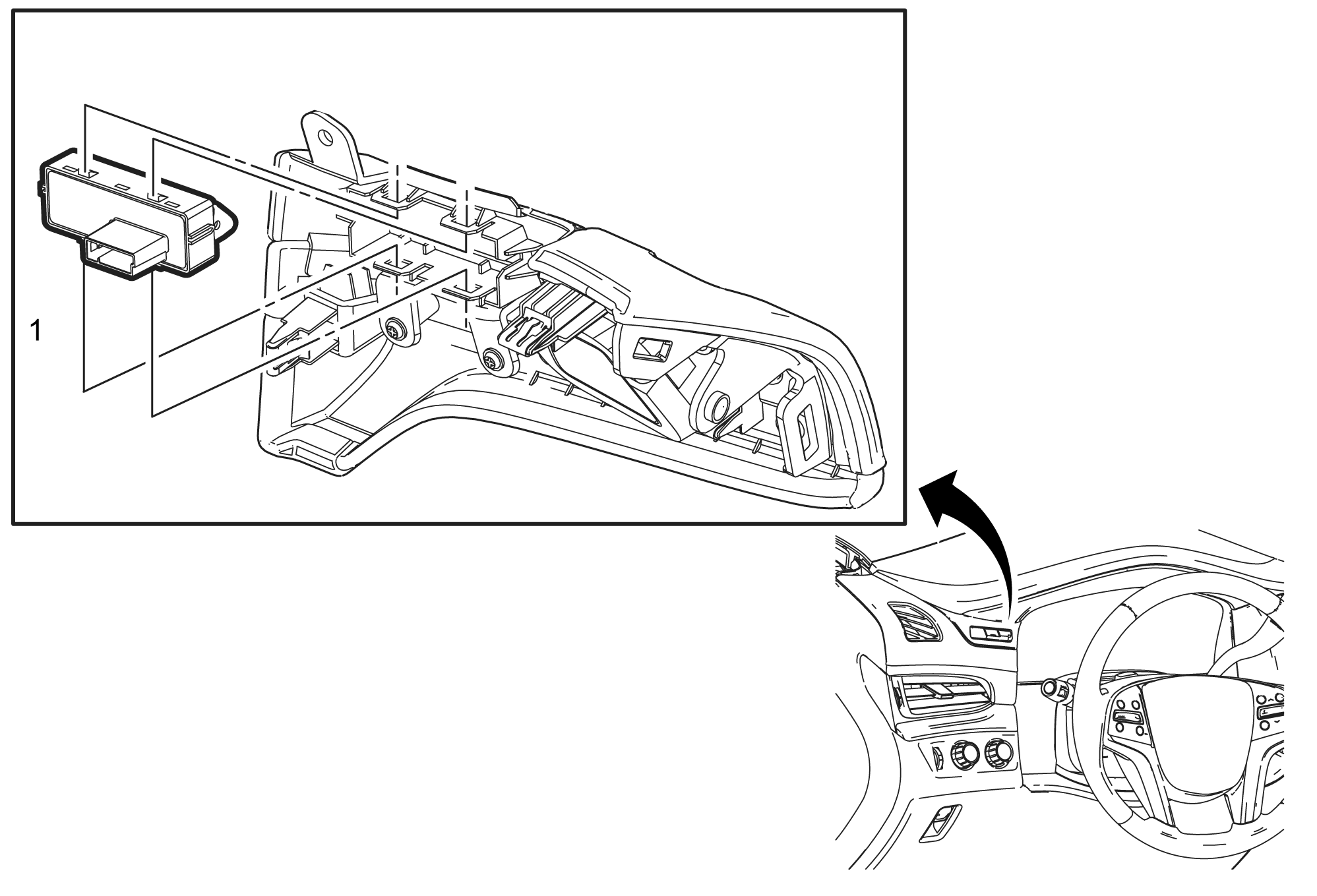

Fig 1: Head-Up Display Dimmer Switch (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel upper trim panel - left side. Refer to Instrument Panel Upper Trim Panel Replacement - Left Side (Cadillac) .
1	Head Up Display Dimmer Switch Procedure  Release tabs on switch to remove from the trim panel.
