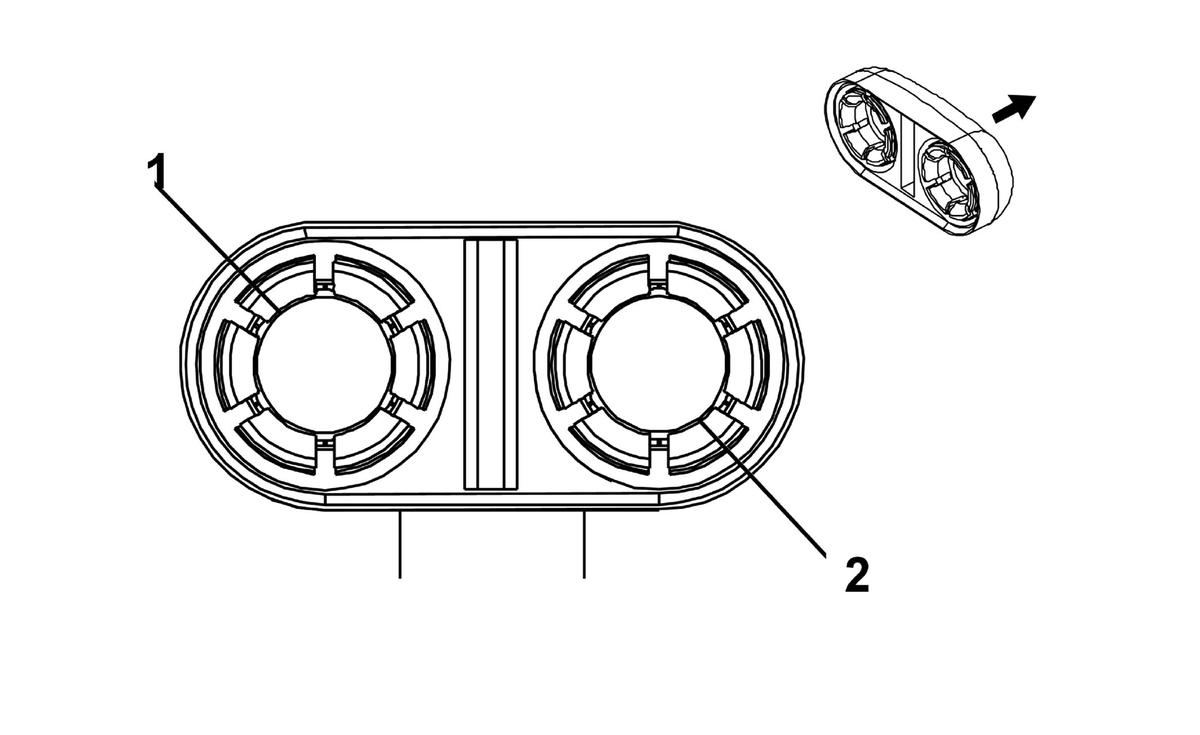

B159L Glass Breakage Sensor - Left (UTV-SWB)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 3332-3TE-17
- Service Connector: Pending
- Description: 2-Way F Snap Type (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN |
293 |
Rear Defog Element Control |
I |
- |
| 2 |
0.5 |
BU/VT |
7597 |
Glass Breakage Sensor Signal |
I |
- |
