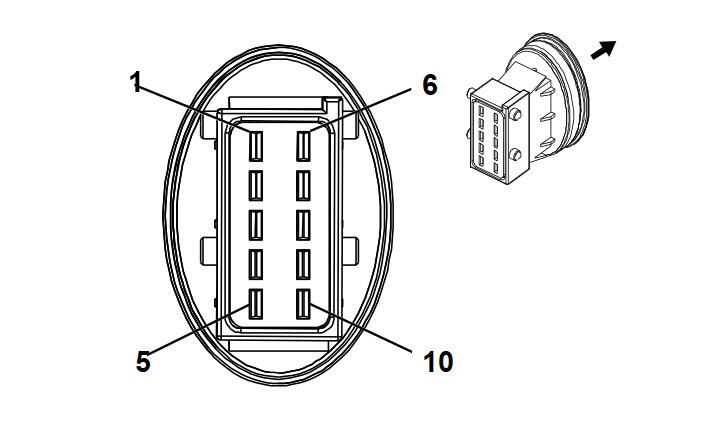

X120 Forward Lamp Harness to Right Headlamp Harness

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.


Connector Part Information Harness Type: Forward Lamp OEM Connector: 9134900 Service Connector: 88988927 Description: 10-Way F 2.8 Junior Power Timer Series, Sealed (BK)	Connector Part Information Harness Type: Right Headlamp OEM Connector: - Service Connector: Service by Harness - See Part Catalog Description: 10-Way M (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575415	J-35616-35 (VT)	J-38125-36	4-964286-1	Lear 16	E	1
II	Not Required	Not Available	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.75	BK	650	I	-	Ground	1	0.75	BK	650	II	-
2	0.5	WH	311	I	-	Right Headlamp High Beam Control	2	0.5	BK	311	II	-
3	1 0.75	YE YE	312 312	I I	T4F -T4F	Right Headlamp Low Beam Control Right Headlamp Low Beam Control	3	1 0.75	BK BK	312 312	II II	T4F -T4F
4	0.5 0.5	BU/BN GN/VT	7539 1315	I I	-CZ2 MAB	Right Front DRL Control Right Front Turn Signal Lamp Control	4	0.5 0.5	BK BK	7539 1315	II II	-CZ2 MAB
5	0.35	WH/YE	7545	I	MAB	Right Front Turn Lamp Feedback Signal	5	0.35	BK	7545	II	MAB
6	0.35	VT/GY	1039	I	T4F	Run/Crank Ignition 1 Voltage	6	0.35	BK	1039	II	T4F
7	0.35	GN/WH	7530	I	T4F	Local Interconnect Network Serial Data Bus 8	7	0.35	BK	7530	II	T4F
8	0.35	BK	650	I	T4F	Ground	8	0.35	BK	650	II	T4F
9	-	-	-	-	-	Not Occupied	9	-	-	-	-	-
10	1	BK	650	I	T4F	Ground	10	1	BK	650	II	T4F
