F101 Passenger Instrument Panel Air Bag X1
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

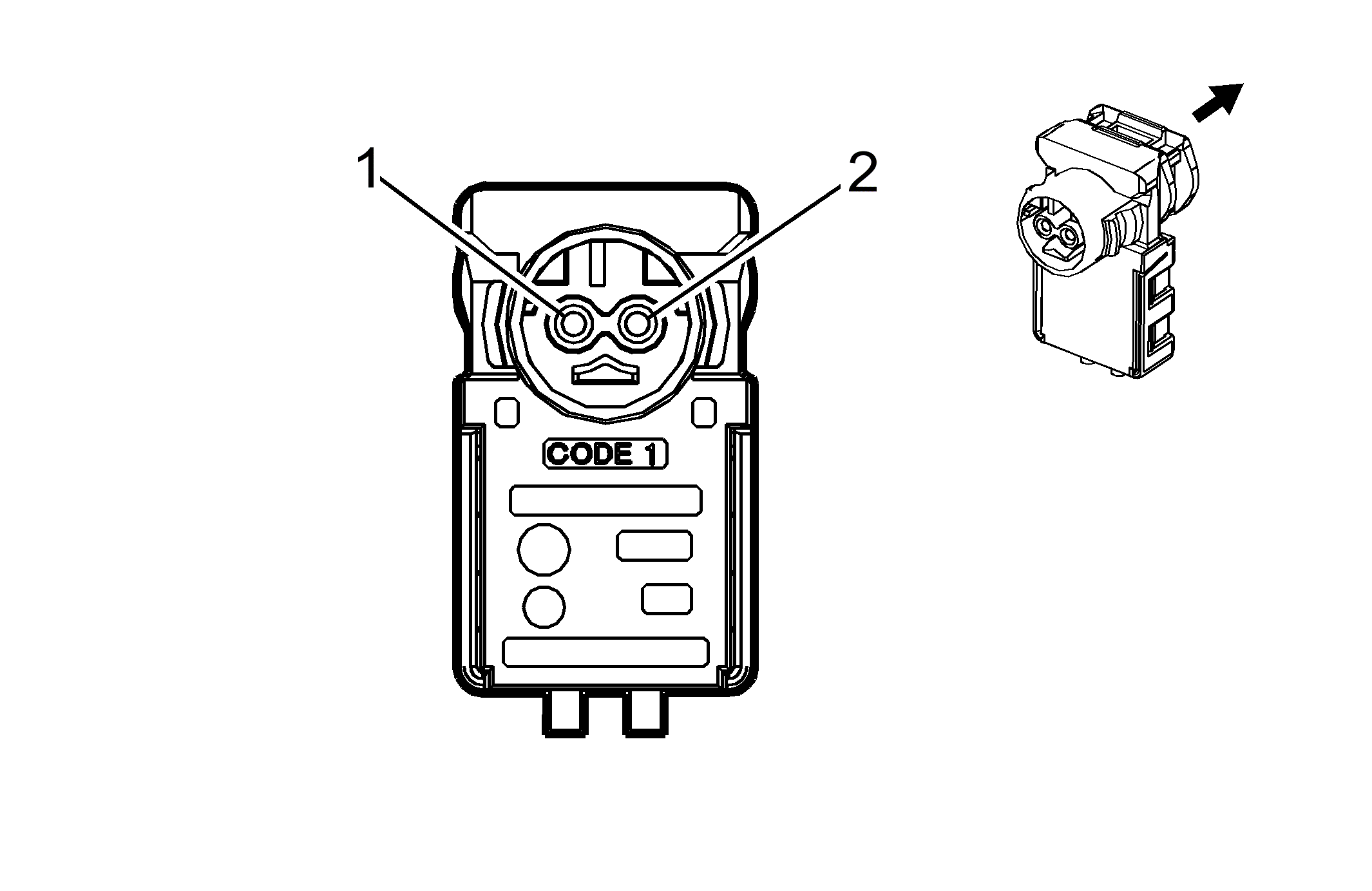

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 98853-0062
- Service Connector: 19153417
- Description: 2-Way F AK-2 Series (GN with YE Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/OG |
3025 |
Passenger IP Module Stage 1 High Control |
I |
- |
| 2 |
0.5 |
OG/WH |
3024 |
Passenger IP Module Stage 1 Low Control |
I |
- |
