Radiator Upper Bracket Replacement (LTG, LGX)

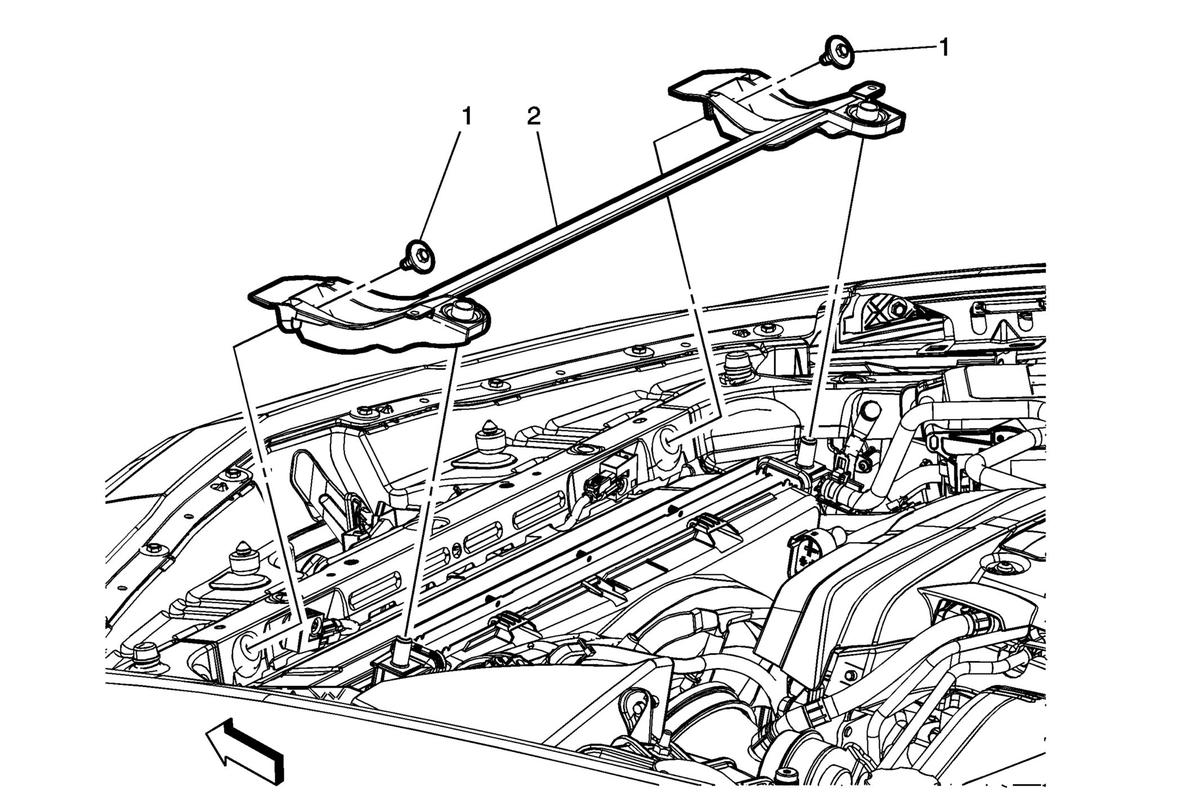

Fig 1: Radiator Upper Bracket (LTG, LGX)
GM3471573Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (CTS)Front Compartment Front Sight Shield Replacement (CTS-V) .
1 Radiator Upper Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Radiator Upper Bracket
