Supercharger Bypass Valve Actuator Tube Replacement

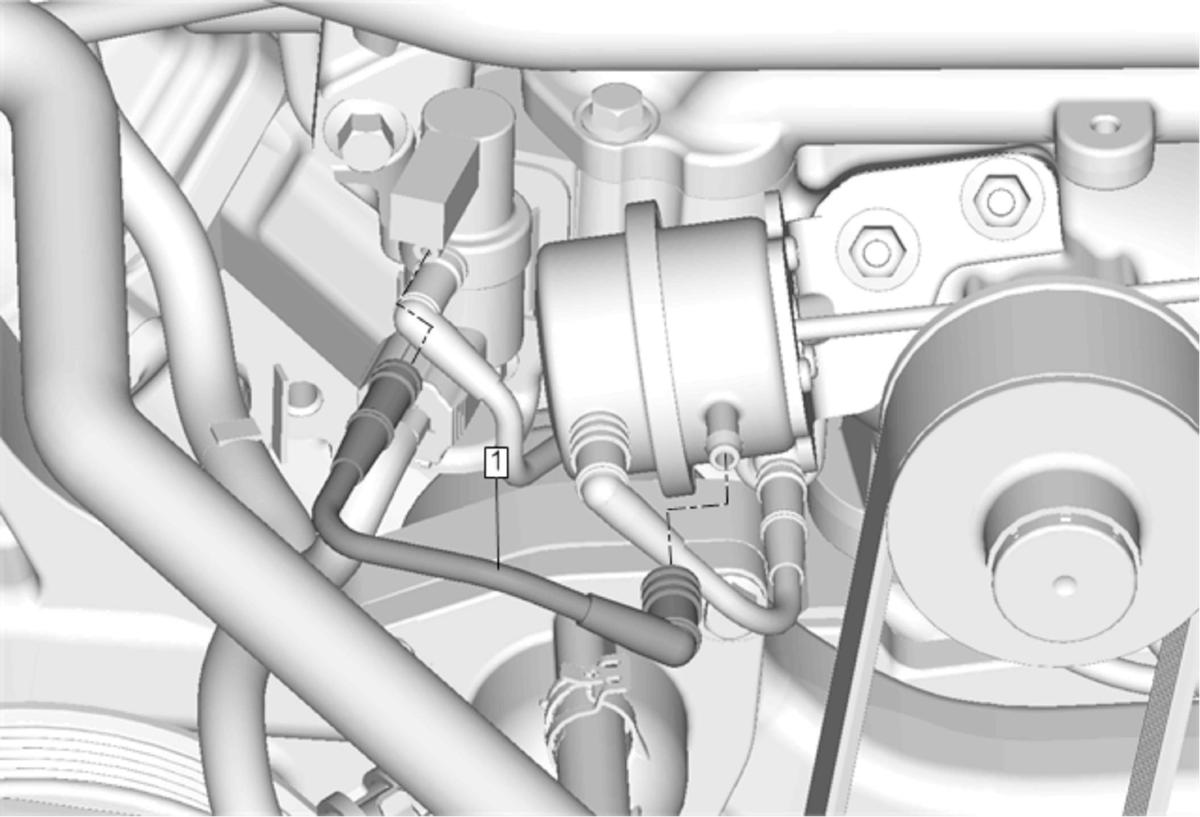

Fig 1: Supercharger Bypass Valve Actuator Tube

GM3968222

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Supercharger Bypass Valve Actuator Tube
