Charge Air Bypass Valve Vacuum Source Tube Replacement

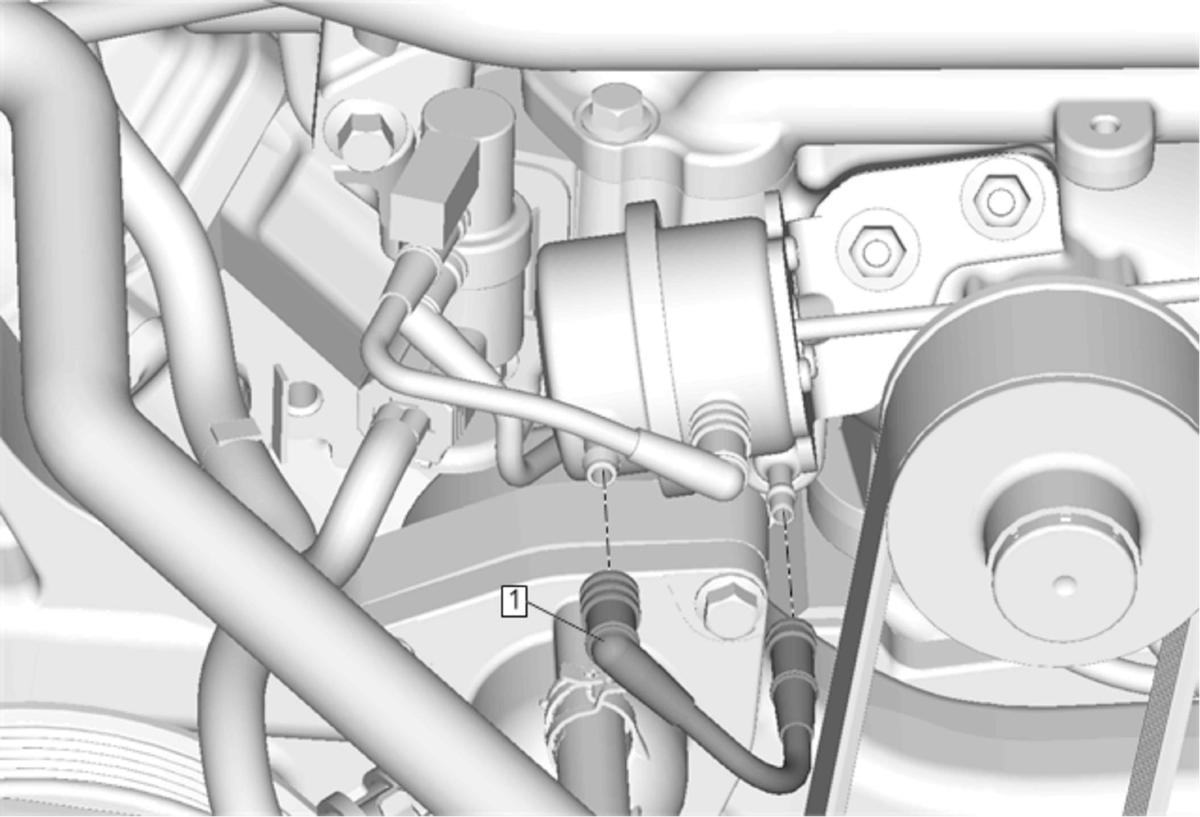

Fig 1: Charge Air Bypass Valve Vacuum Source Tube
GM3968270Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Charge Air Bypass Valve Vacuum Source Tube
