Charge Air Bypass Valve Tube Replacement

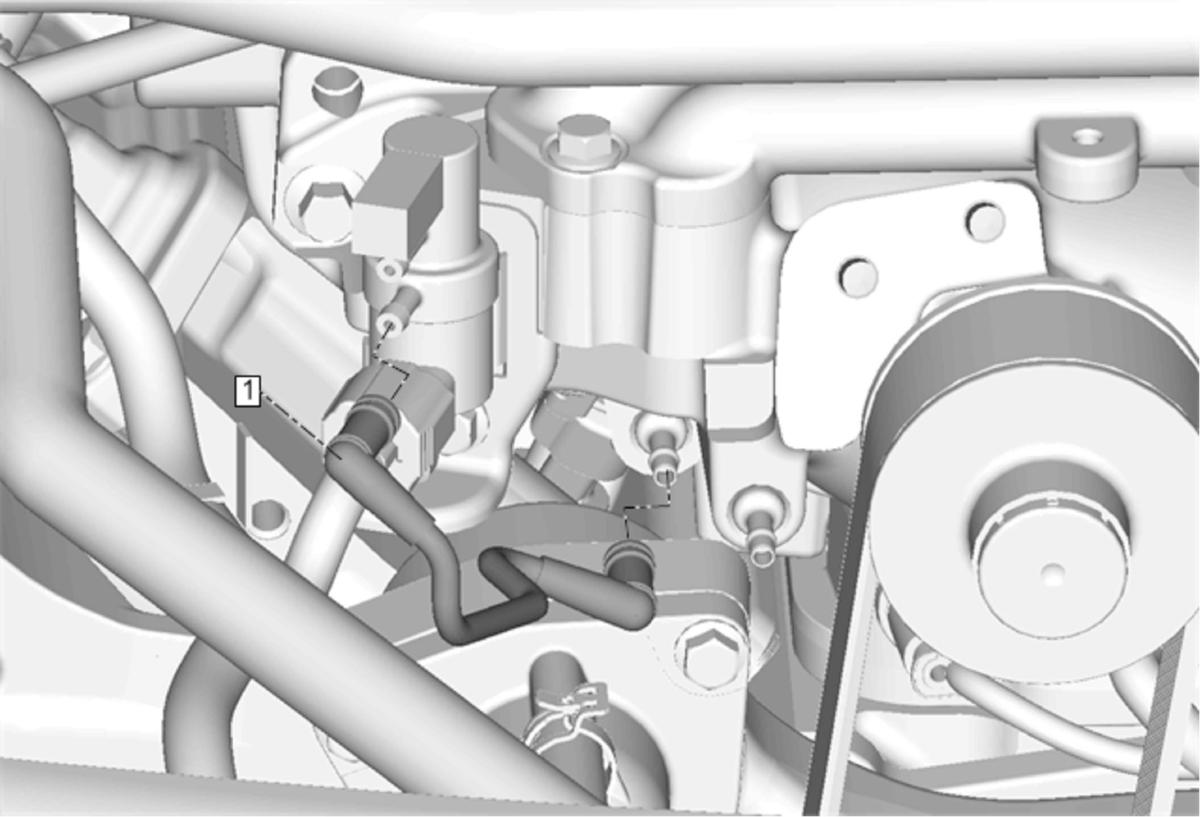

Fig 1: Charge Air Bypass Valve Tube

GM3968295

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Charge Air Bypass Valve Tube
