Charge Air Bypass Regulator Solenoid Valve Replacement

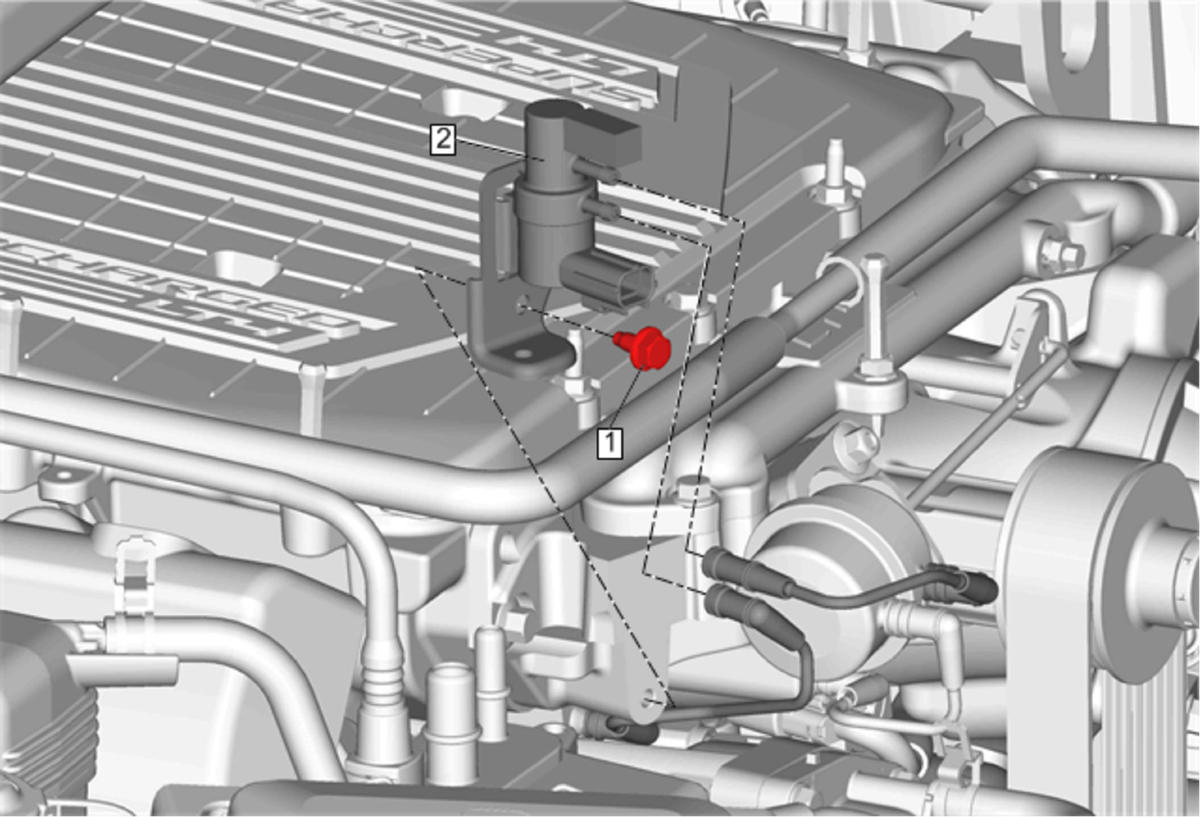

Fig 1: Charge Air Bypass Regulator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement - Front
1	Charge Air Bypass Regulator Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Bypass Regulator Solenoid Valve Procedure Disconnect the harness connector. Disconnect the vacuum tubes from the charge air bypass regulator solenoid valve.

Callout

Component Name

Charge Air Bypass Regulator Solenoid Valve Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Charge Air Bypass Regulator Solenoid Valve

Procedure

Disconnect the harness connector.
Disconnect the vacuum tubes from the charge air bypass regulator solenoid valve.
