Horn Replacement (Right Hand Low Note)

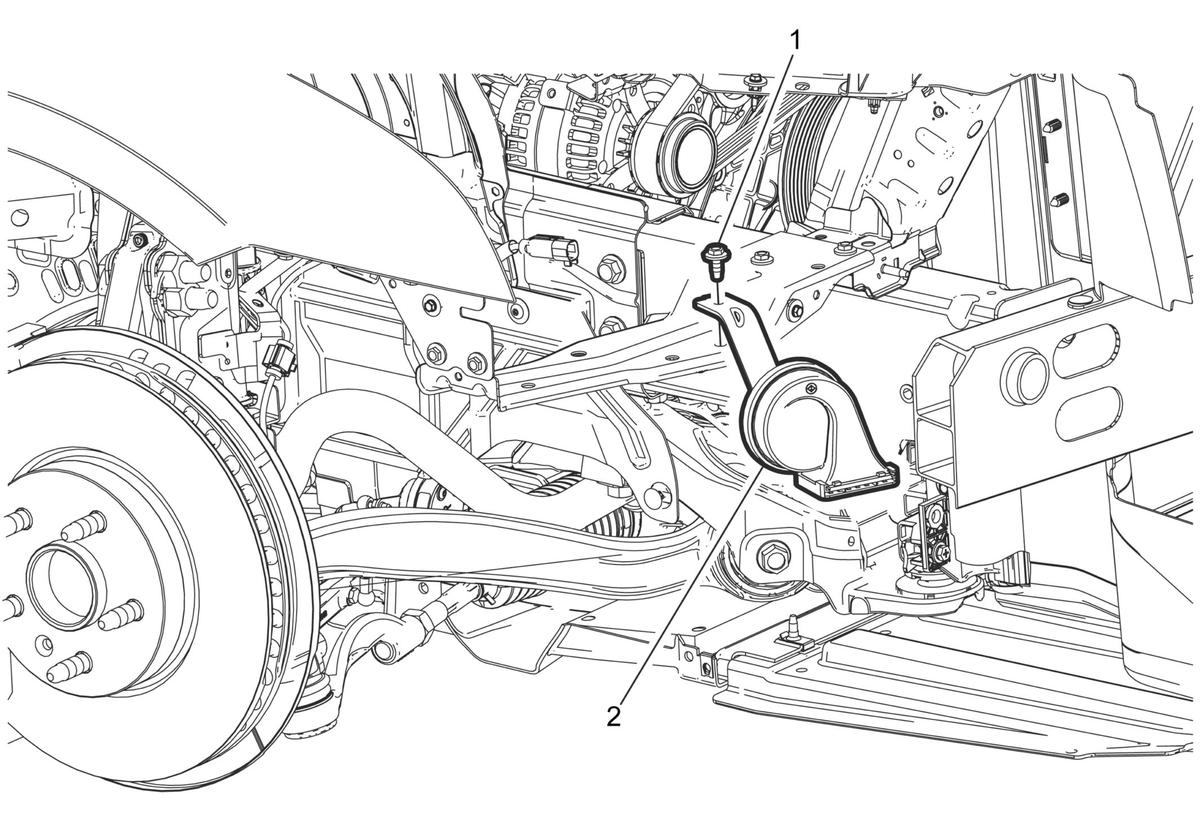

Fig 1: Horn (Right Hand Low Note)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the right headlamp. Refer to Headlamp Replacement
1	Horn Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Horn Procedure  Disconnect the electrical connector.
