Horn Replacement (Left Hand High Note)

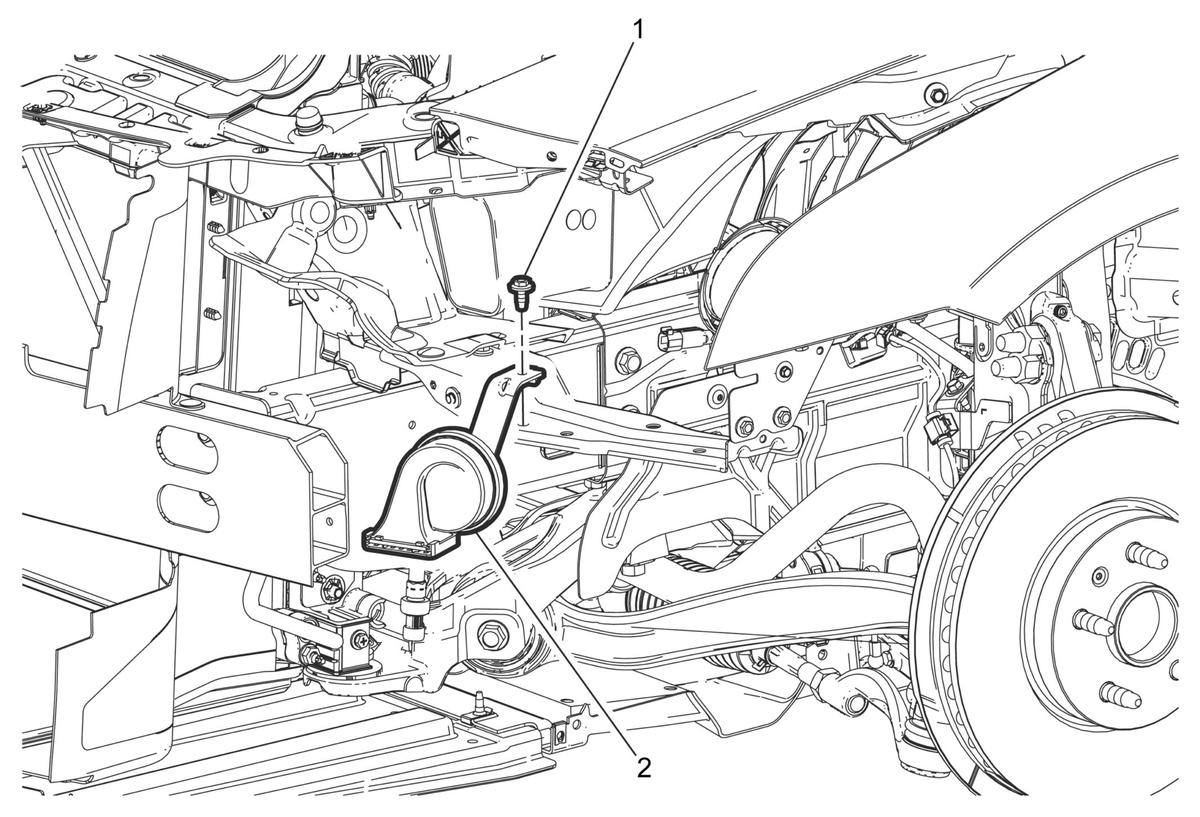

Fig 1: Horn (Left Hand High Note)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the left headlamp. Refer to Headlamp Replacement .
1	Horn Bolt CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Horn Procedure  Disconnect the electrical connector.
