Rocker Panel Molding Replacement

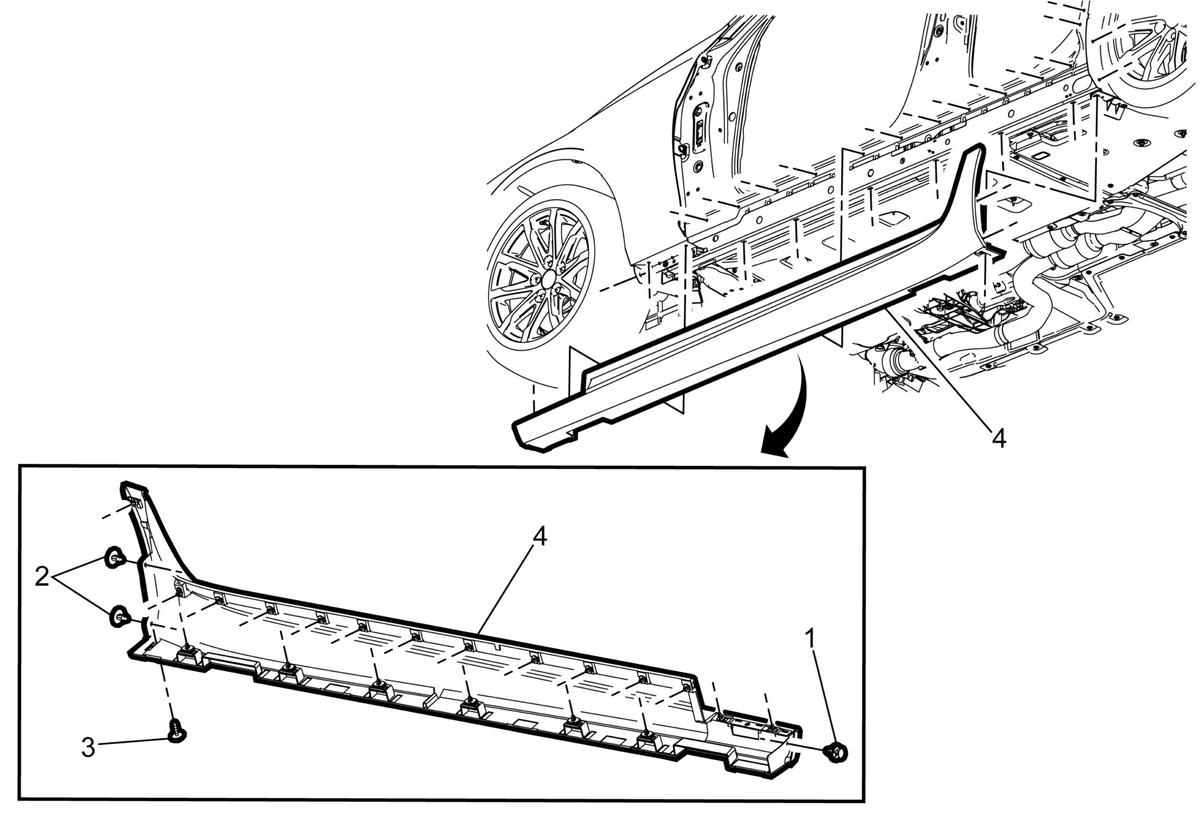

Fig 1: Rocker Panel Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open both front and rear side doors.
1	Front Wheelhouse Liner Retainer
2	Rear Wheelhouse Liner Retainer (Qty: 2)
3	Rear Tire Front Air Deflector Screw CAUTION: Refer to Fastener Caution .
4	Rocker Panel Molding Procedure Release the 2 rocker panel molding retainers from the front fender. From the bottom edge firmly pull down the rocker panel molding (6 retainers) from the rocker outer panel. From the top edge firmly pull out the rocker panel molding (12 retainers) from the body side outer panel and remove from the vehicle.
