Hood Primary and Secondary Latch Replacement (CTS-V)

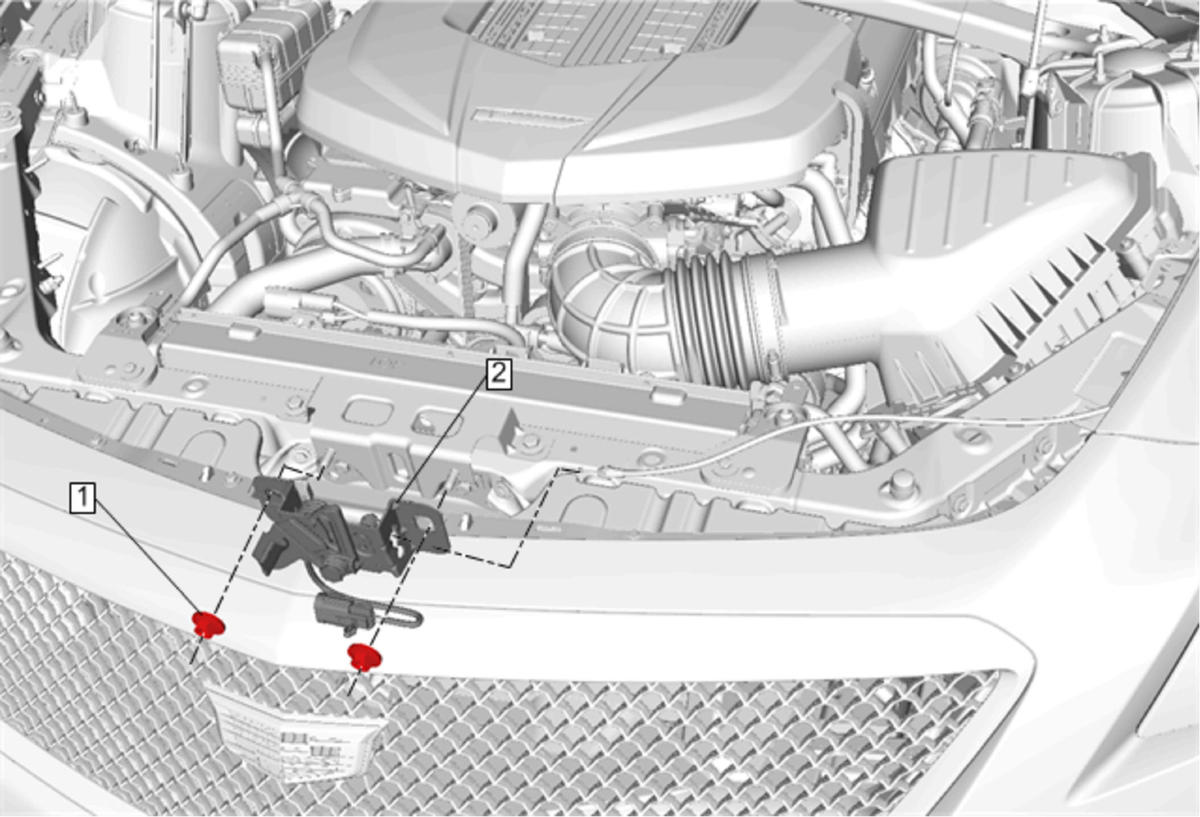

Fig 1: Hood Primary and Secondary Latch (CTS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Compartment Front Sight Shield Replacement (CTS-V)
1	Hood Primary and Secondary Latch Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Primary and Secondary Latch Procedure Mark location of hood latch to avoid the need to realign after installation. Pull the hood latch out and disconnect the hood release cable. Disconnect the electrical connector.

Callout

Component Name

Hood Primary and Secondary Latch Nut (Qty: 2)

CAUTION:

Tighten
22 N.m (16 lb ft)

Hood Primary and Secondary Latch

Procedure
