Front Fender Insulator Replacement

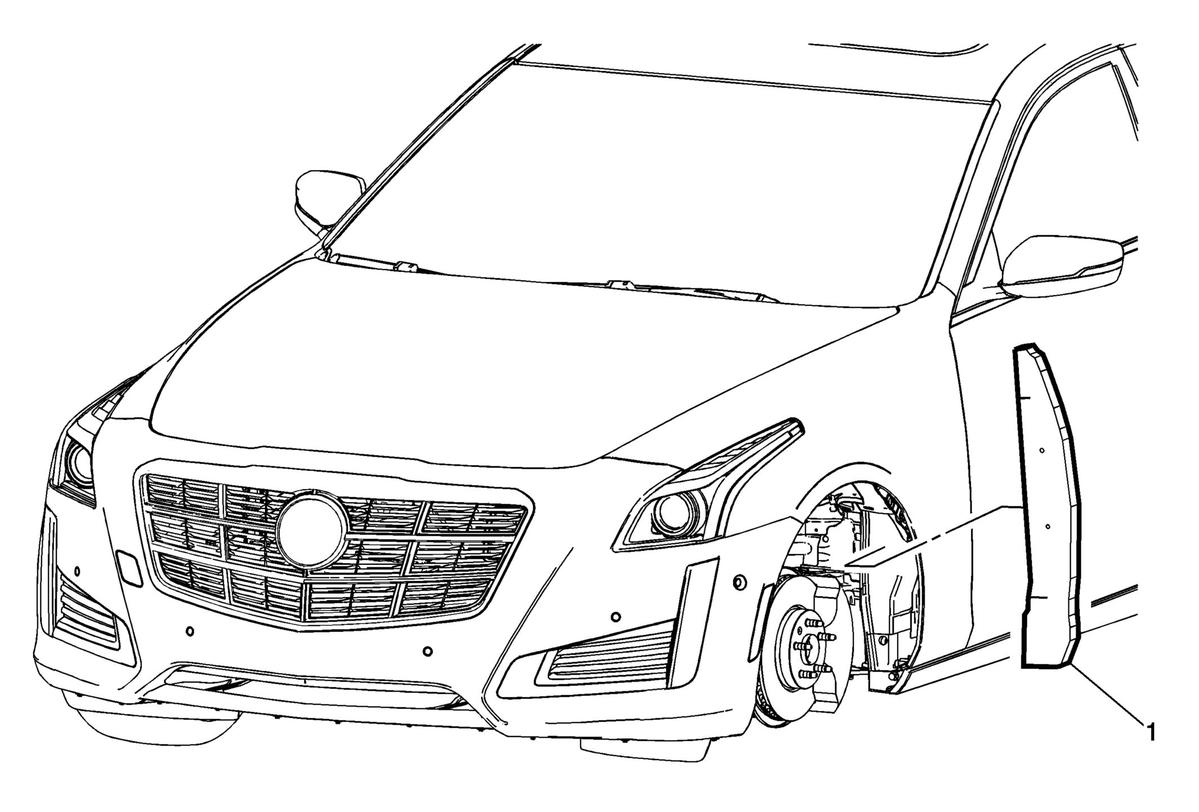

Fig 1: Front Fender Insulator
GM3414526Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
If replacing the right side fender insulator, remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement
1 Front Fender Insulator

Procedure

  1. Grasp the front fender insulator and pull from the rear of the fender.
  2. Firmly press the fender insulator into the rear of the fender until fully seated.
