Rear Side Door Weatherstrip Replacement - Body Side

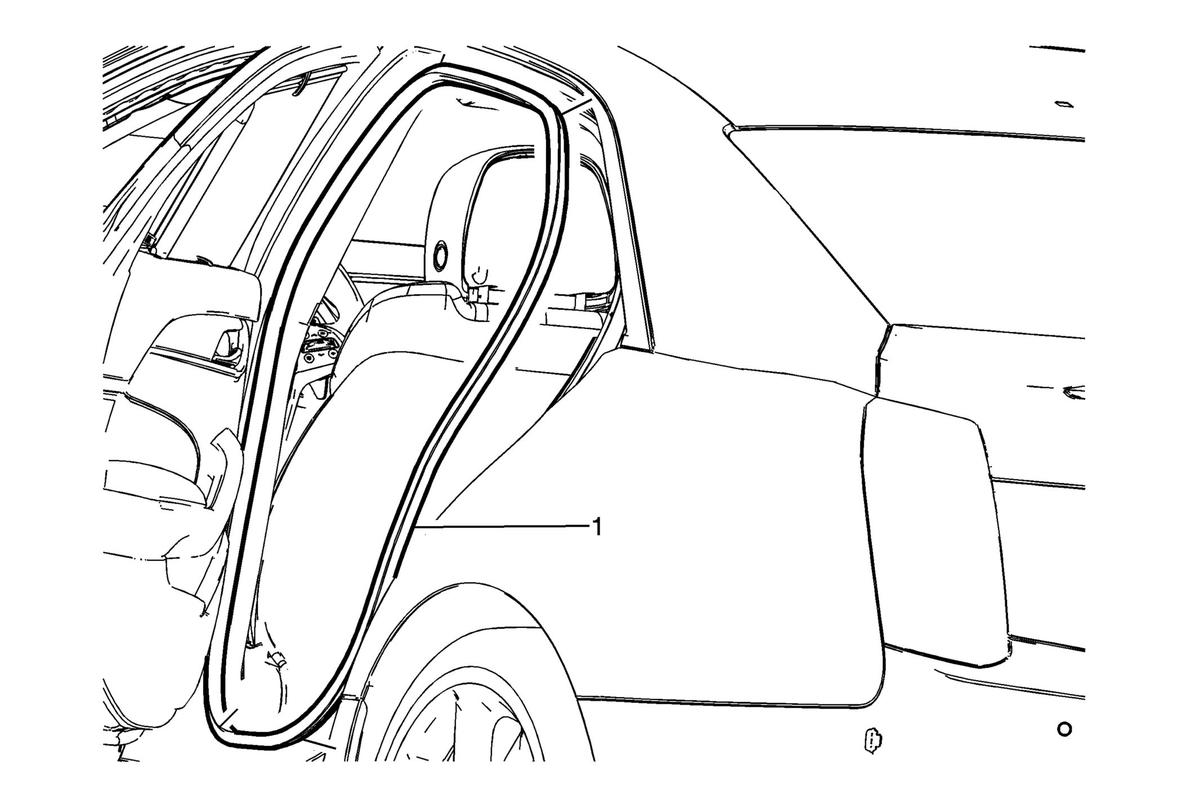

Fig 1: Rear Side Door Weatherstrip - Body Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear door sill plate. Refer to Rear Side Door Sill Garnish Molding Replacement .
1	Rear Side Door Weatherstrip to Body Side Procedure Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange. Position the weatherstrip in the upper corner of the center pillar Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners. Ensure that the weatherstrip is seated on the entire door opening flange.

Callout

Component Name

Preliminary Procedure
Remove the rear door sill plate. Refer to Rear Side Door Sill Garnish Molding Replacement .

Rear Side Door Weatherstrip to Body Side

Procedure

Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Position the weatherstrip in the upper corner of the center pillar
Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
Ensure that the weatherstrip is seated on the entire door opening flange.
