Rear Side Door Upper Hinge and Lower Hinge Replacement

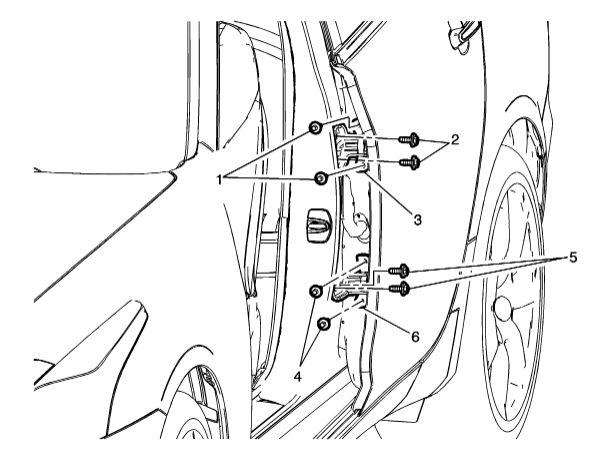

Fig 1: Rear Side Door Upper Hinge and Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Upper Hinge to Door Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedures Mark the location of the hinge being removed. Keep door in closed position. Replace one hinge at a time. Tighten 25 N.m (18 lb ft)
2	Rear Side Door Upper Hinge to Body Bolt (Qty: 2) Tighten 32 N.m (24 lb ft)
3	Rear Side Door Upper Hinge
4	Rear Side Door Lower Hinge to Door Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
5	Rear Side Door Lower Hinge to Body Bolt (Qty: 2) Tighten 32 N.m (24 lb ft)
6	Rear Side Door Lower Hinge Procedure Check the door for proper alignment, adjust as necessary. Refer to Rear Side Door Adjustment . If the door striker needs adjusting. Refer to Rear Side Door Lock Striker Adjustment . NOTE: Inspect the door for proper operation.
