Rear Compartment Lid Replacement

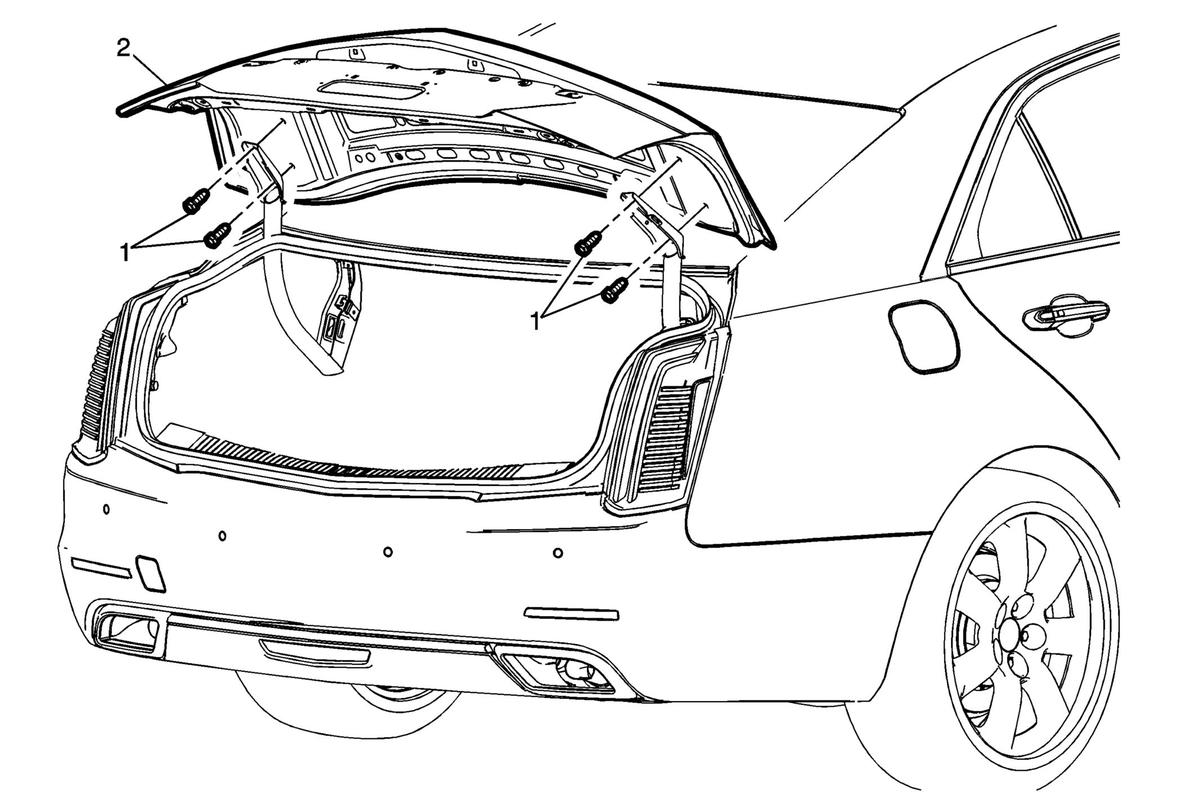

Fig 1: Rear Compartment Lid
GM3414504Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Compartment Lid Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Rear Compartment Lid

Procedure

  1. Disconnect the electrical connectors and harness retainers.
  2. Remove the electrical harness from the rear compartment lid.
  3. Remove the rear compartment with the aid of an assistant.
  4. Transfer parts as needed.
  5. Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment (CTS) Rear Compartment Lid Adjustment (CTS-V) .
