Rear Compartment Lid Hinge Replacement

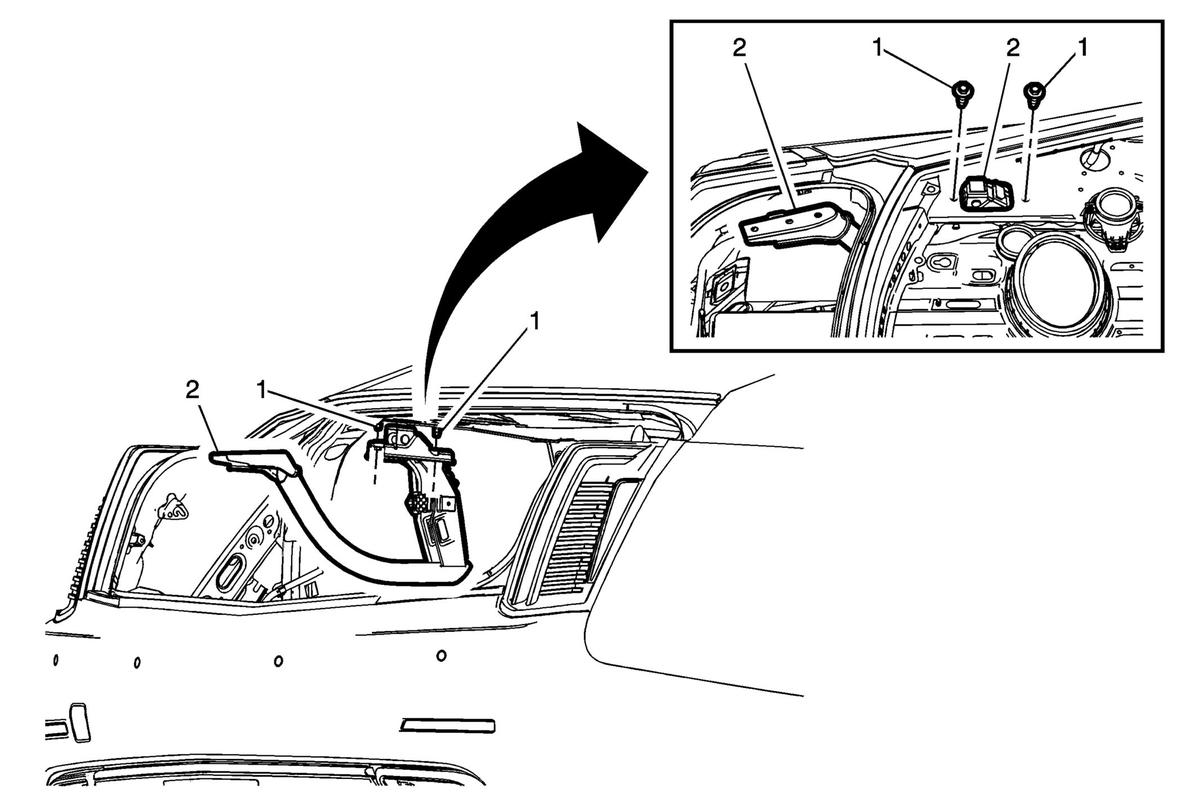

Fig 1: Rear Compartment Lid Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement . Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (With DB3)Rear Window Panel Trim Replacement (Without DB3) . Remove the rear compartment lid hinge spring. Refer to Rear Compartment Lid Hinge Spring Replacement . If servicing the right rear compartment lid hinge, disconnect the rear compartment lid strut from the hinge. Refer to Rear Compartment Lid Strut Replacement
1	Rear Compartment Lid Hinge Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Hinge If servicing the right hinge, remove the harness from the hinge tube. Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment (CTS) Rear Compartment Lid Adjustment (CTS-V)

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (With DB3)Rear Window Panel Trim Replacement (Without DB3) .
Remove the rear compartment lid hinge spring. Refer to Rear Compartment Lid Hinge Spring Replacement .
If servicing the right rear compartment lid hinge, disconnect the rear compartment lid strut from the hinge. Refer to Rear Compartment Lid Strut Replacement

Rear Compartment Lid Hinge Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Compartment Lid Hinge

If servicing the right hinge, remove the harness from the hinge tube.
Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment (CTS) Rear Compartment Lid Adjustment (CTS-V)
