Hood Rear Seal Replacement (CTS-V)
Hood Rear Seal Replacement (CTS-V)

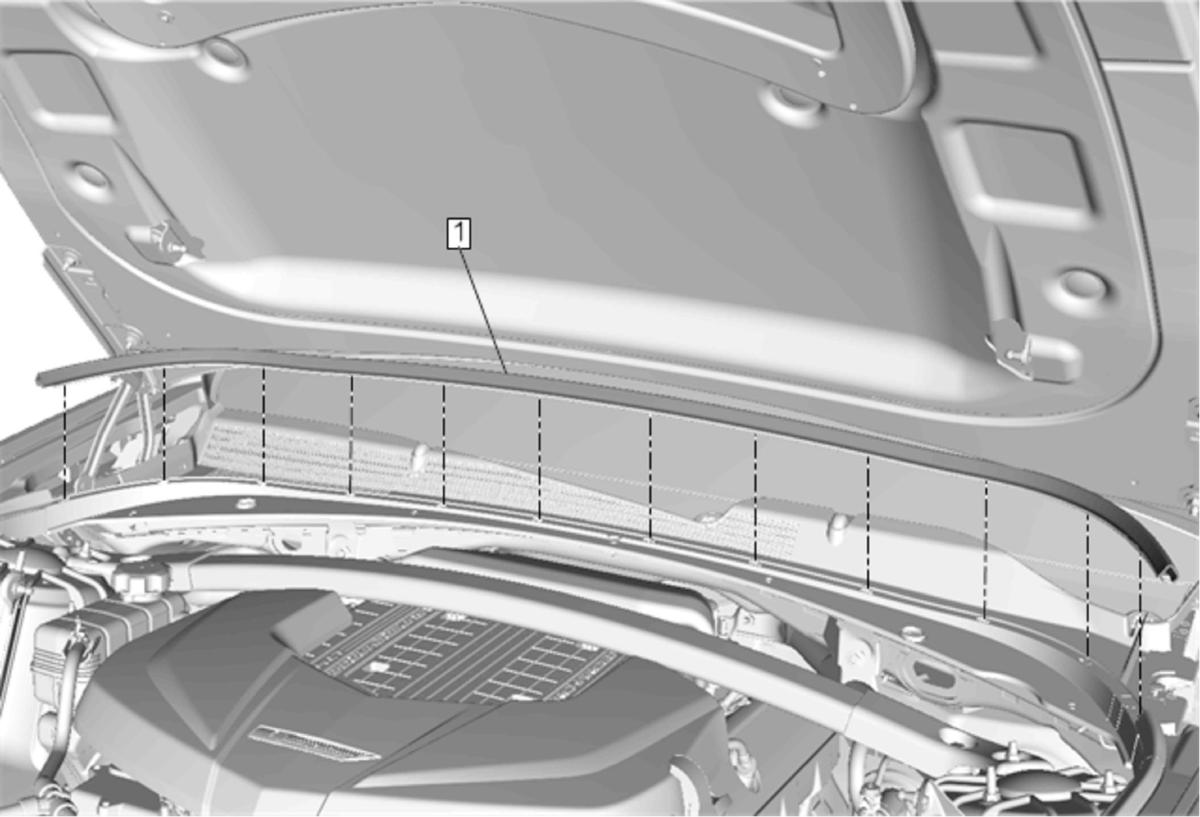

Fig 1: Hood Rear Seal (CTS-V)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Hood Rear Seal
Procedure
The hood rear seal is held in place with plastic retainers that are part of the air inlet grille panel. Carefully pull the rear seal to the right/left to release from the retainers on the air inlet grille panel.
