Hood Insulator Replacement (CTS-V)

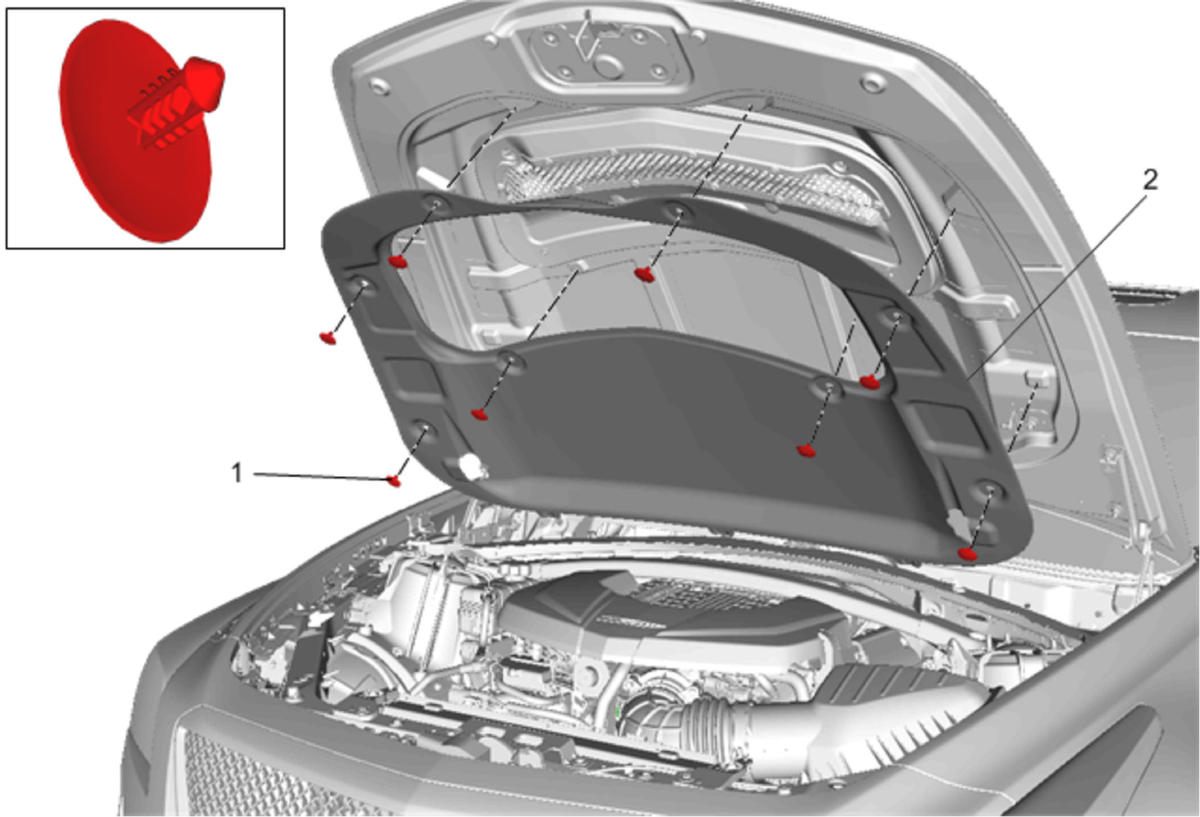

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Hood Strut Replacement (CTS-V) When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. |
|
| 1 | Hood Insulator Retainer (Qty: 8) |
| 2 | Hood Insulator Procedure Ensure the 3 lower integral tabs are secured to the hood. |
