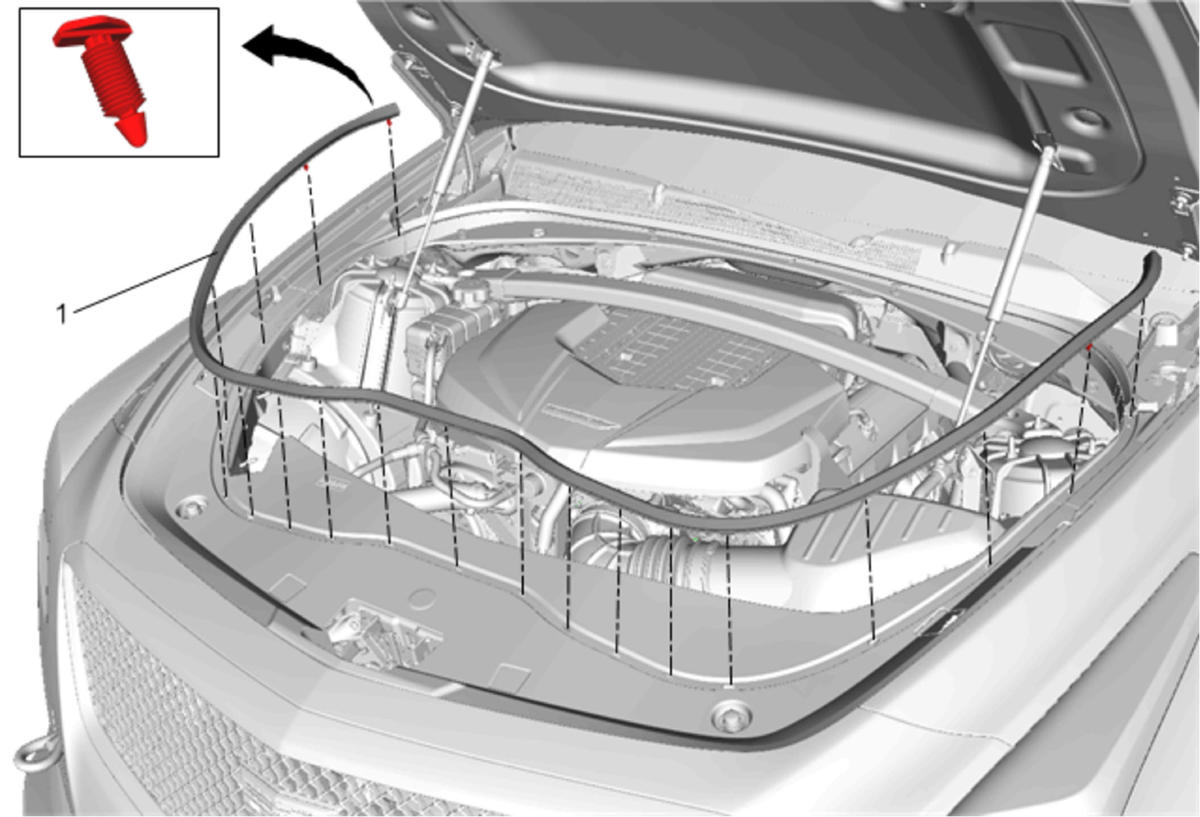

Hood Front Seal Procedure
- Using a trim type tool release the 4 retainers at each end of the hood front seal.
- The remainder of the hood front seal is held in place with plastic retainers that are part of the front compartment front sight shield. Carefully pull the seal to the right/left to release the seal from the retainers on the sight shield.
|
