Front Side Door Wiring Harness Replacement

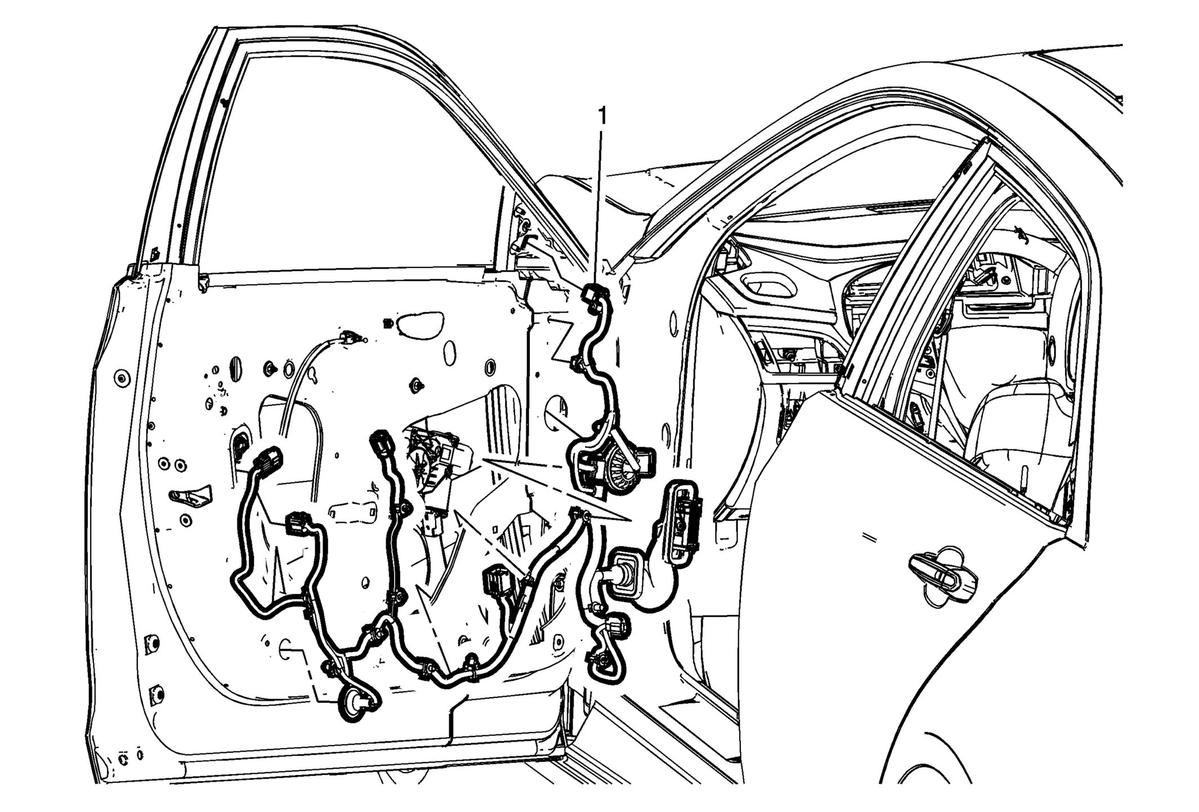

Fig 1: Front Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door window garnish molding. Refer to Front Side Door Window Garnish Molding Replacement . Remove the front side door speaker. Refer to Radio Front Speaker Replacement . Remove the front side door water deflector.
1	Front Side Door Wiring Harness Procedure Disconnect electrical connectors.

Callout

Component Name

Preliminary Procedures

Remove the front side door window garnish molding. Refer to Front Side Door Window Garnish Molding Replacement .
Remove the front side door speaker. Refer to Radio Front Speaker Replacement .
Remove the front side door water deflector.

Front Side Door Wiring Harness
Procedure
Disconnect electrical connectors.
