Front End Sheet Metal Diagonal Brace Replacement - Left Side (CTS-V)

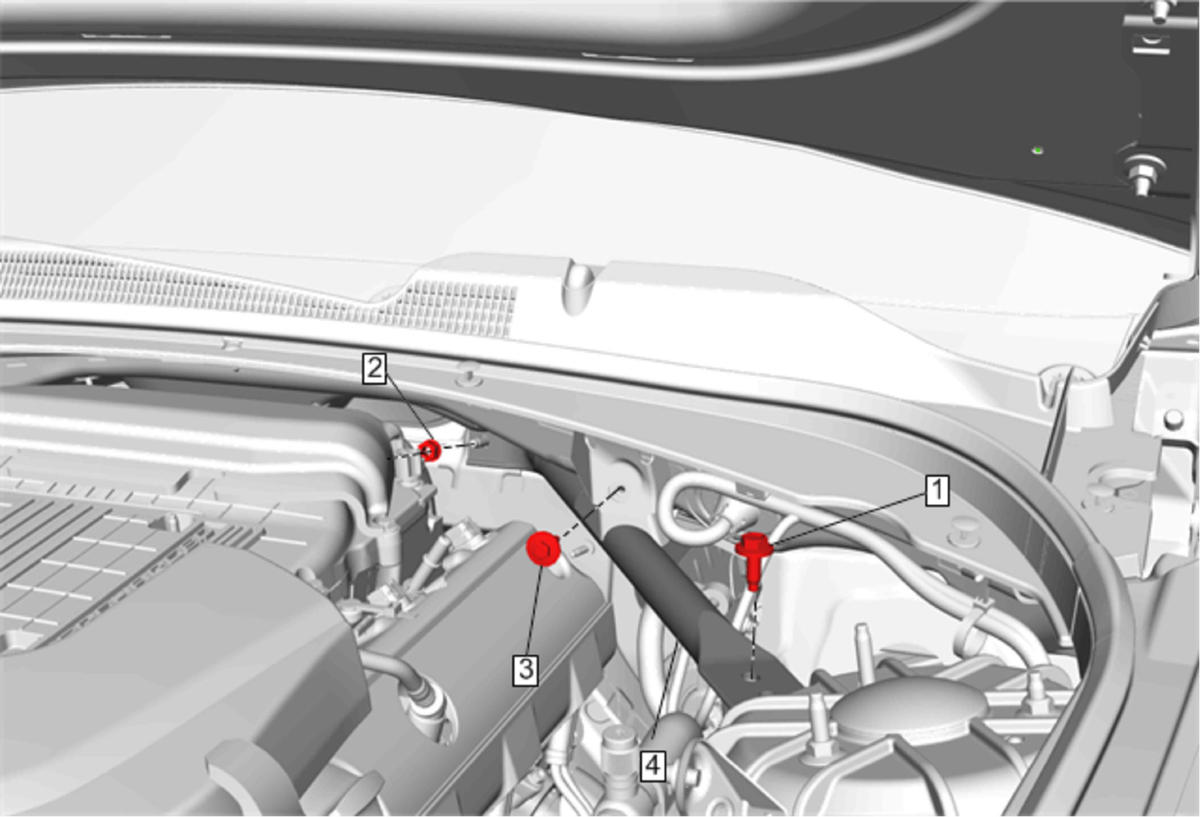

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front End Sheet Metal Cross Brace Replacement (CTS-V) |
|
| 1 | Front End Sheet Metal Diagonal Brace Bolt
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Front End Sheet Metal Diagonal Brace Nut Tighten 22 N.m (16 lb ft) |
| 3 | Plenum Panel Bolt Tighten 9 N.m (80 lb in) |
| 4 | Front End Sheet Metal Diagonal Brace |
