Front Compartment Side Sight Shield Replacement

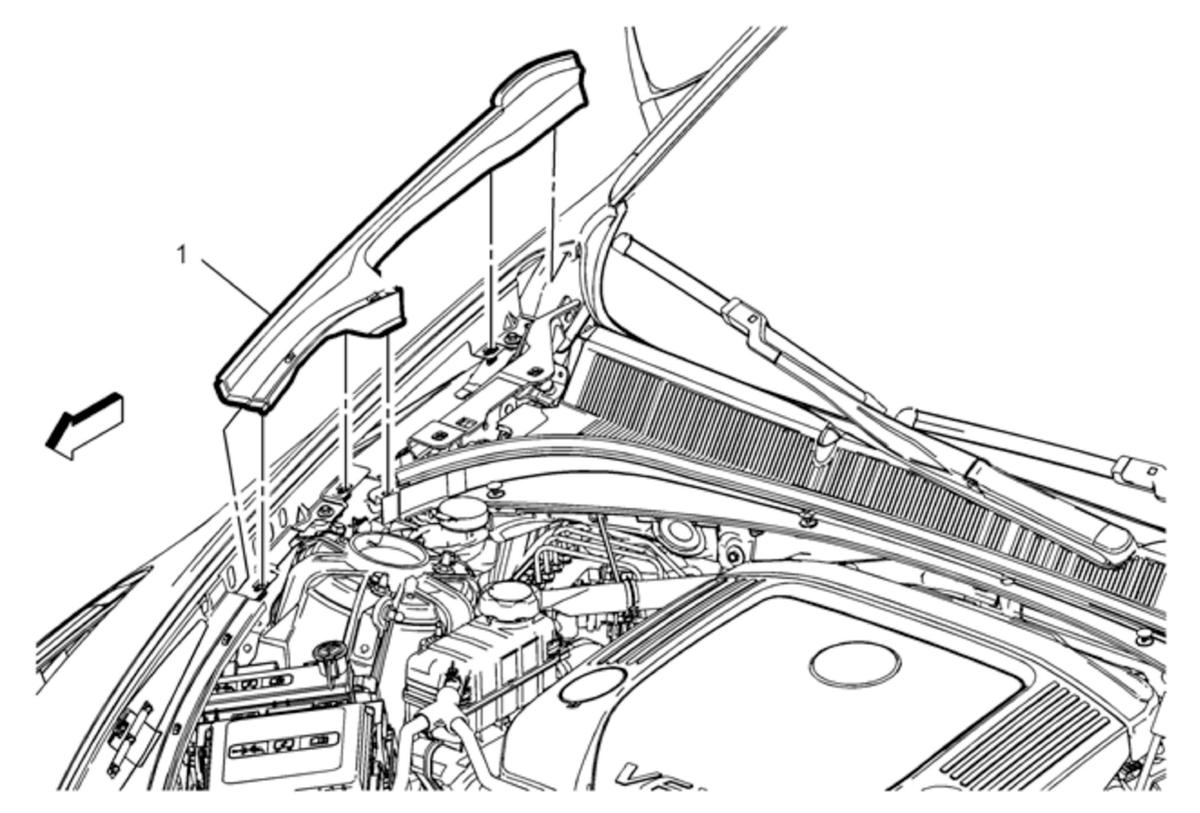

Fig 1: Front Compartment Side Sight Shield
GM4261214Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Reposition the rear portions of the front compartment front sight shield that overlap the side sight shields. Front Compartment Front Sight Shield Replacement (CTS) Front Compartment Front Sight Shield Replacement (CTS-V)
1 Front Compartment Side Sight Shield

Procedure

  1. Using a suitable plastic tool, release the 3 hidden retainers from the fender.
  2. To install, position the front guide pin to the side sight shield first.
