Throttle Body Assembly Replacement (LF3)

WARNING: This page is about a different variant/trim than selected.

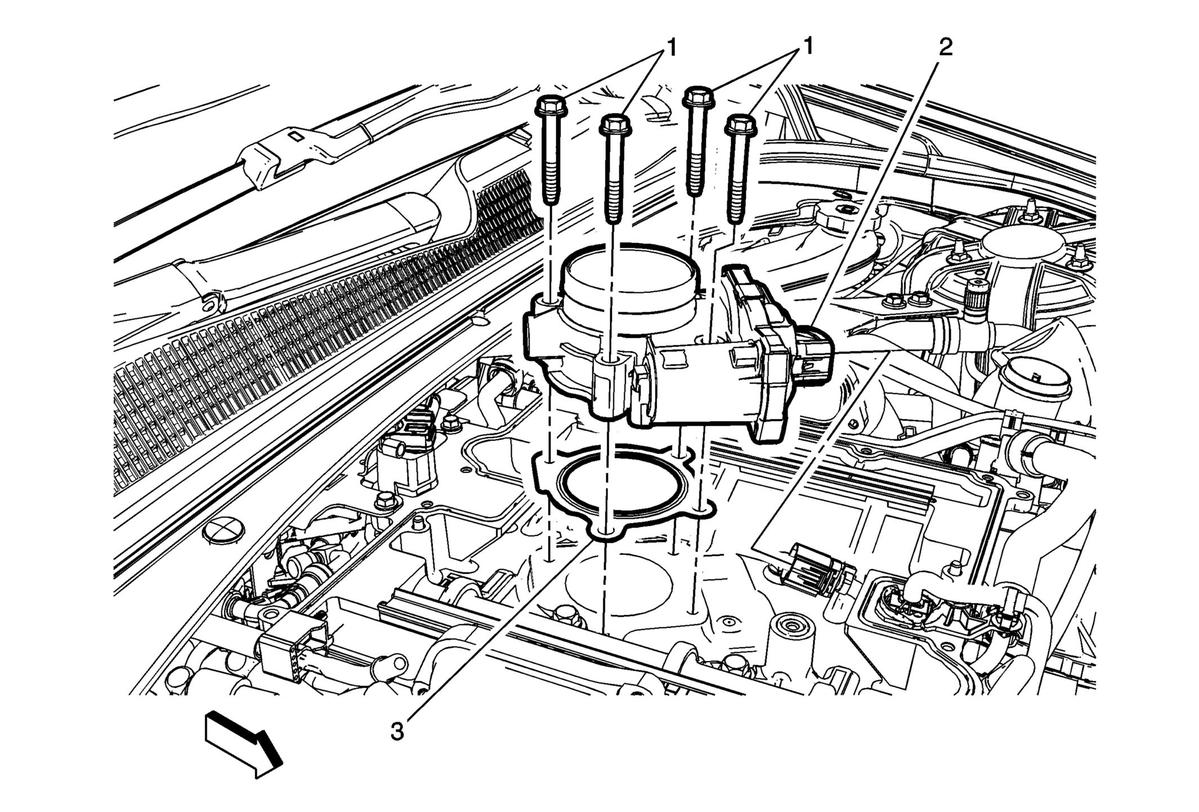

Fig 1: Throttle Body Assembly (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Charge Air Cooler Cover Replacement
1	Throttle Body Assembly Fastener (4x) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body NOTE: Clean any debris prior to removing the throttle body. Cover any openings to prevent debris from entering into the intake manifold. Procedure Disconnect the electrical connector. After replacement is complete, perform the throttle learn procedure. Throttle or Idle Learn (LGX)
3	Throttle Body Gasket NOTE: Install a NEW throttle body gasket when installing the throttle body.
