Engine Rear Noise Shield Replacement (LF3)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement (LF3) Fuel Pipe Shield Replacement (LGX) . |
|

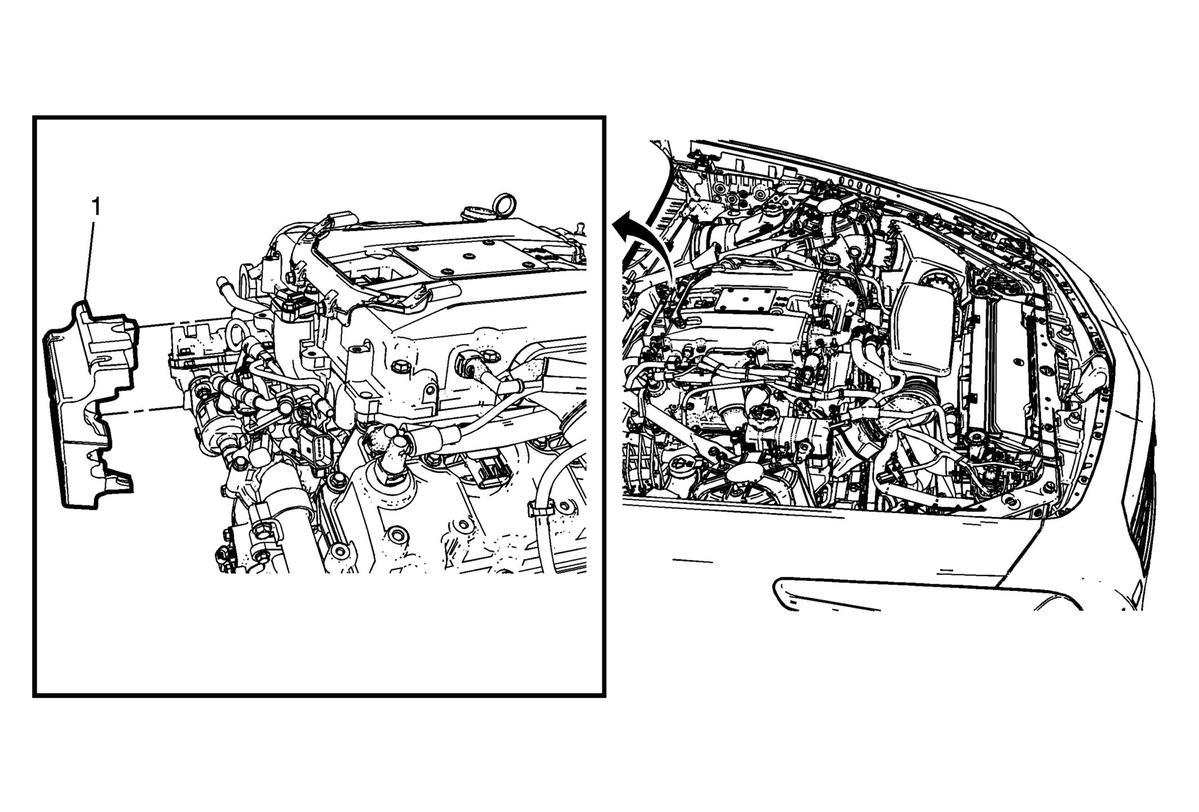

| 1 | Engine Rear Noise Shield Procedure Unsnap the engine noise shield from the rear of the engine.
NOTE:
The engine noise shield snaps into place once the fuel pipe shield is removed. |
