Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LF3 (Bank 1 Camshaft Cover to Air Outlet Duct))
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the bolts for the right side charge air cooler inlet pipe and position the pipe aside. Refer to Charge Air Cooler Inlet Pipe Replacement - Right Side (LF3) . |
|

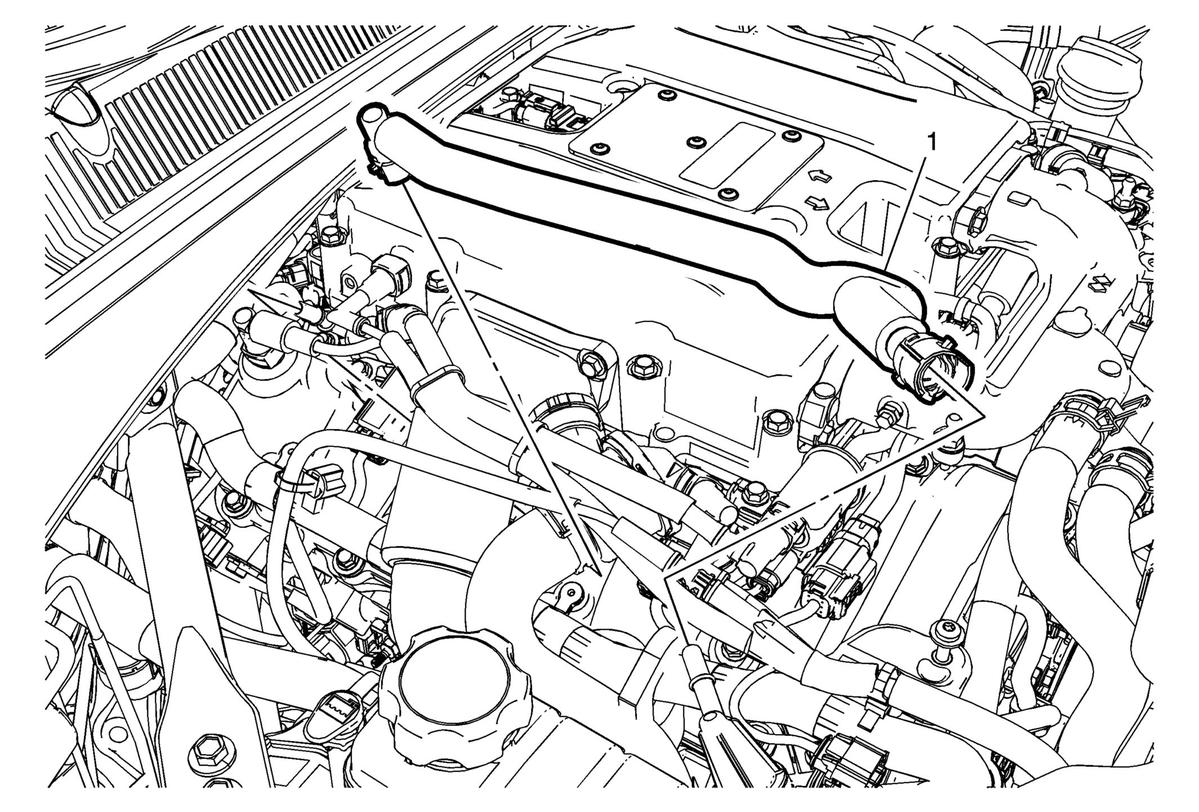

| 1 | Positive Crankcase Ventilation Tube Procedure Disconnect the PCV tube from the intake manifold and the camshaft cover. Refer to Plastic Collar Quick Connect Fitting Service . |
