1-2-3-4-5-Reverse Clutch Piston Removal

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

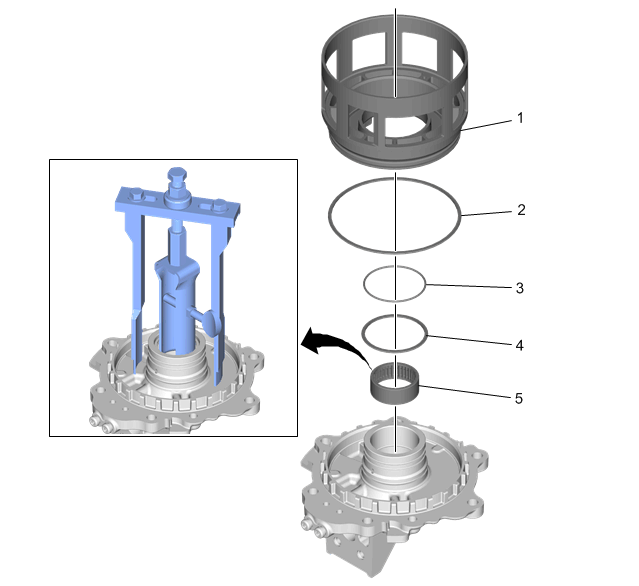

Fig 1: 1-2-3-4-5-Reverse Clutch Piston

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	1-2-3-4-5-Reverse Clutch Piston
2	1-2-3-4-5- Reverse Clutch Piston Outer Seal CAUTION: Refer to Seal Reuse Caution .
3	1-2-3-4-5- Reverse Clutch Piston Dam Inner Seal (O-ring) CAUTION: Refer to Seal Reuse Caution .
4	1-2-3-4-5- Reverse Clutch Piston Inner Seal CAUTION: Refer to Seal Reuse Caution .
5	Output Shaft Bearing NOTE: Ensure the feet of DT-26941 bearing remover are properly engaged with the bearing. Special Tools DT-26941 Bushing and Bearing Remover DT-45124 Removal Bridge DT-45124-9 Puller Leg For equivalent regional tools, refer to Special Tools .
