Driver or Passenger Seat Inner Recliner Finish Cover Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

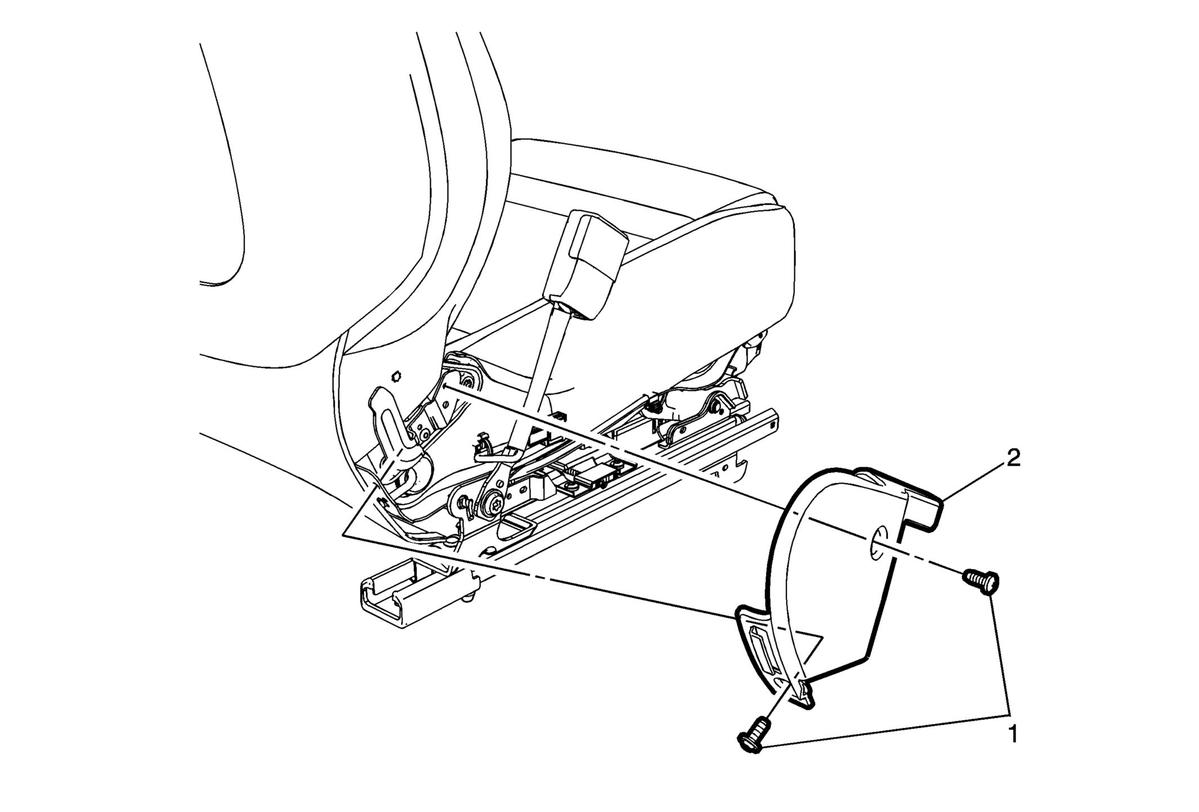

Fig 1: Driver or Passenger Seat Inner Recliner Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
1	Driver or Passenger Seat Inner Recliner Finish Cover Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Inner Recliner Finish Cover Procedure Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener. Remove the inner finish cover by pulling upward.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation

Driver or Passenger Seat Inner Recliner Finish Cover Fastener (Qty: 2)

CAUTION: Refer to Fastener Caution .

Driver or Passenger Seat Inner Recliner Finish Cover

Procedure

Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener.
Remove the inner finish cover by pulling upward.
