Transmission Mount Replacement (All Wheel Drive)
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

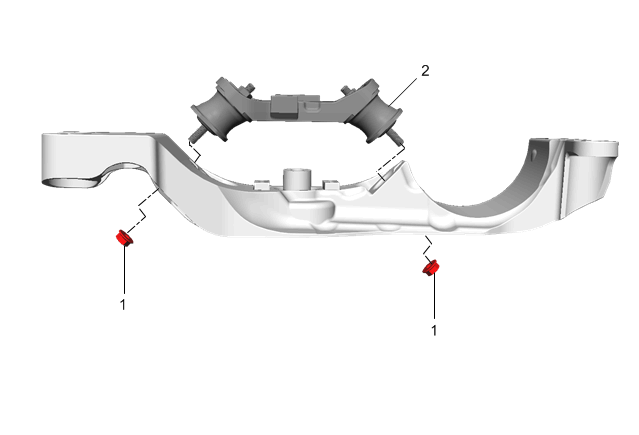

| Callout | Component Name |
|---|---|
| Preliminary Procedures Transmission Support Replacement (AWD) . |
|
| 1 | Transmission Mount Nut [2x]
CAUTION:
Refer to Fastener Caution
. Tighten 30 N.m (22 lb ft) |
| 2 | Transmission Mount |
