Propeller Shaft Transmission Flange Fluid Seal Replacement (All Wheel Drive)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

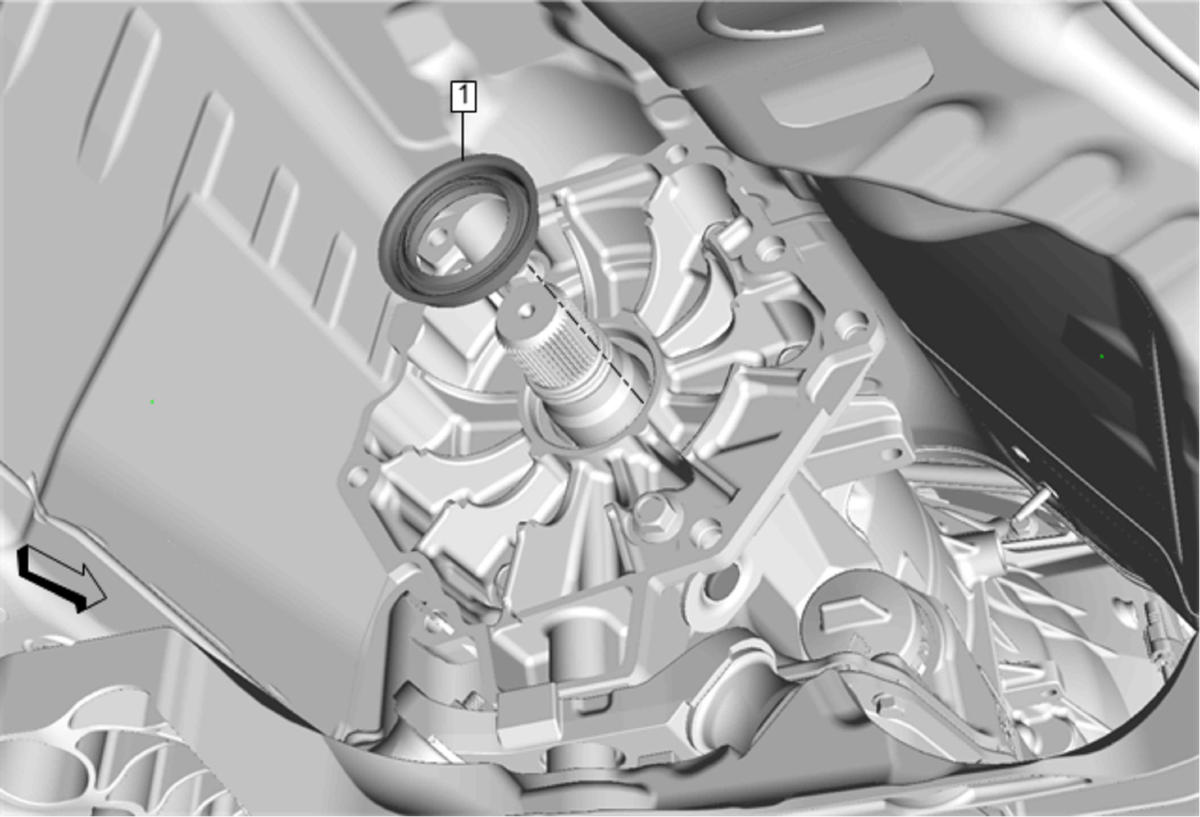

Fig 1: Propeller Shaft Transmission Flange Fluid Seal (All Wheel Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Transfer Case Assembly Replacement .
1	Propeller Shaft Transmission Flange Fluid Seal Procedure Use the J-6125-B hammer and J-36825-A remover to remove the seal. Use care in order to avoid damaging the output shaft bushing. Lubricate the seal with clean transmission fluid. Use the DT-50648 installer to install the seal. Special Tools DT-50648 Case Seal Installer J-6125-B Slide Hammer with Adaptor J-36825-A Output Shaft Oil Seal Remover For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures
Transfer Case Assembly Replacement .

Propeller Shaft Transmission Flange Fluid Seal

Procedure

Use the J-6125-B hammer and J-36825-A remover to remove the seal. Use care in order to avoid damaging the output shaft bushing.
Lubricate the seal with clean transmission fluid.
Use the DT-50648 installer to install the seal.

Special Tools

DT-50648 Case Seal Installer
J-6125-B Slide Hammer with Adaptor
J-36825-A Output Shaft Oil Seal Remover

For equivalent regional tools, refer to Special Tools .
