Installation Procedure

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the automatic transmission fluid pressure test hole plug (1) and tighten to 11 N.m (97 lb in).

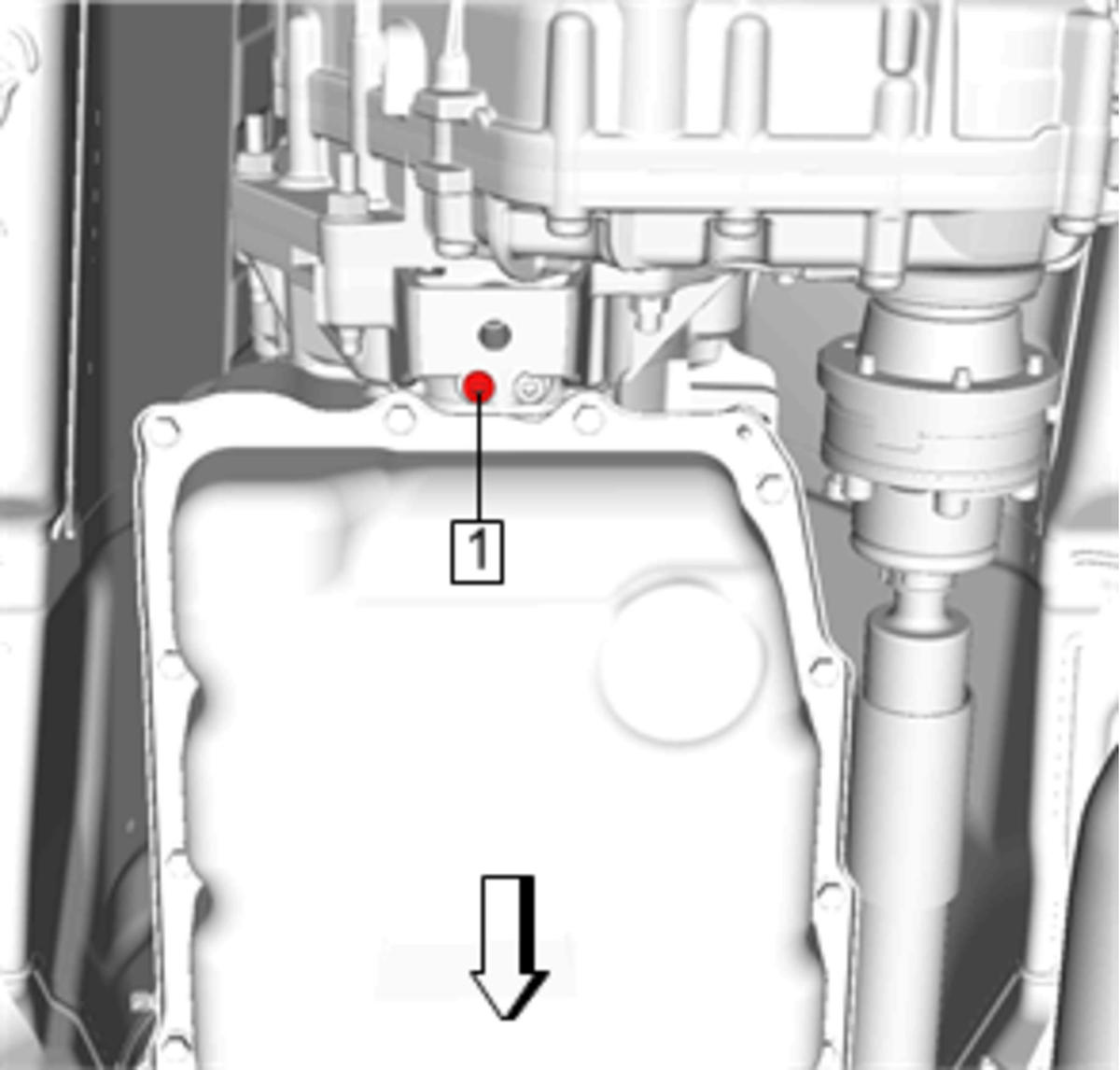

    Fig 1: Automatic Transmission Fluid Pressure Test Hole Plug
    GM4072974Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Component Fastener Tightening Caution .
  2. Check the transmission fluid level (fill if necessary). Refer to Transmission Fluid Fill Procedure .
  3. Transmission Support Replacement (AWD) » Install
